ZSR60A Transformer Winding Resistance Meter

Home Transformer Test Kits ZSR60A Transformer Winding Resistance Meter

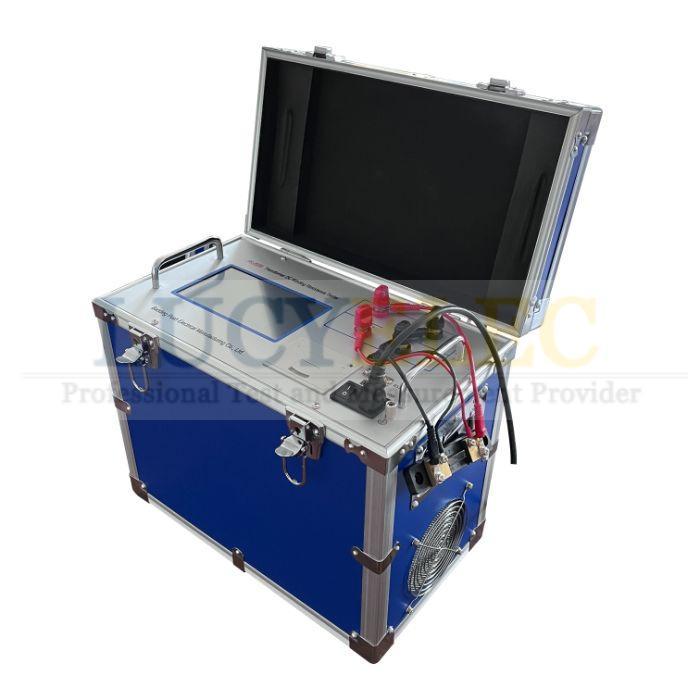

[caption id="attachment_516" align="alignnone" width="700"] ZSR40A winding resistance tester[/caption]

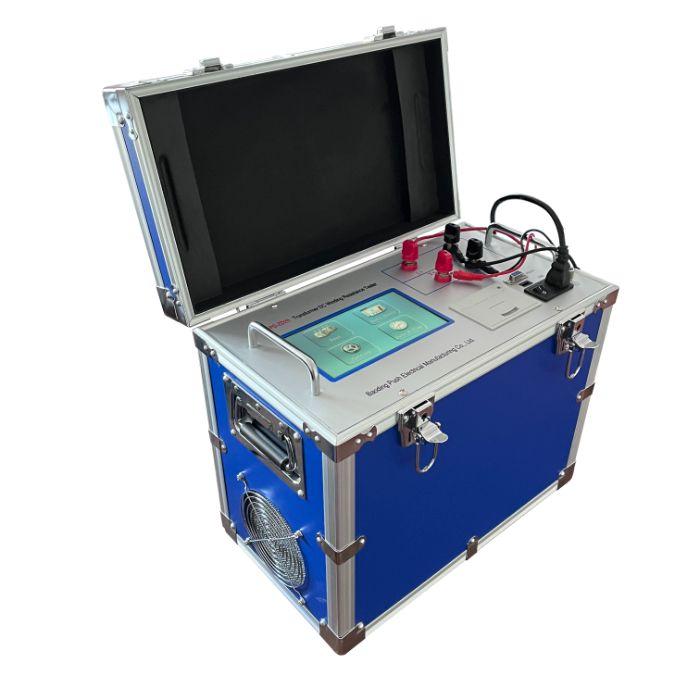

ZSR60A Transformer Winding Resistance Meter

ZSR60A Transformer Winding Resistance Meter is designed and manufactured by Lucyelec. It aims to measure DC resistance of inductive devices, such as transformers and power inductors. It has features of fast measurement, small size, light weight, large output current, perfect protection functions, good repeat-ability, good anti-interference ability, high accuracy, which make it an ideal equipment for measuring DC resistance of transformer winding and high inductive equipment.

Advantage: 1. Seven inch colorful touch screen; 2. Can be connected with bluetooth and cellphone controlled with APP control 3. Built-in printer, USB and RS323 Interface. For more details, please contact Lucyelec

Transformer Test Kits, Winding Resistance Tester Tags: , ,

Description

ZSR60A Transformer Winding Resistance Meter

Model: DC-ZSR60A (20A,40A,50A,60A available)

Ⅰ.Brief Introduction

Winding resistance measurement is very necessary for transformer manufacturer and the department of electrical test programs during transformer factory test, installation, repair, handover and commissioning sections. The transformer coil can effectively find the device welding, connecting parts loose, missing unit, disconnection, and other manufacturing default and other hidden danger occurred after operation.

In order to meet the needs of rapid measurement of DC resistance of transformers, we developed ZSR60A Transformer winding Resistance Test Kit. The instrument is a new powerful technology, small size, light weight, high output current and other characteristics.

The device is controlled by the microcontroller, with a high degree of automation, automatic discharge functions. It is a test instrument of high precision, simple, direct way to achieve fast transformer measurement.



Ⅱ. Features and Advantages

  1. Whole instrument controlled by high speed SCM, high automatic degree and simple operation.
  2. The instrument adopts advanced power supply technology, with multiple current position, test range is wide, suitable for testing DC resistance of large and medium size transformer.
  3. Has a complete circuit protection, reliable.
  4. Discharge alarm, discharge indicator clear, reduces misuse.
  5. Intelligent power management technology, instrument is always working at minimum power state, effective energy saving, reduce heat.
  6. Seven-inch high-brightness touch colorful LCD display
  7. With calendar clock and power storage, can store 1000 groups data, can be check at any time.
  8. The instrument has Bluetooth communication, RS232 communication and USB interface for computer communication and U disk data storage.
  9. Self-contained micro printer, which can print measurement results.
  10. Download the special APP, the instrument can connect to your mobile by bluetooth function to control the instrument throughout the special software, and the test data is stored and uploaded for easy reference.

Ⅲ. Technical Parameters

Item Technical Specification  Remarks
Output Current <20mA、5A、10A、20A 、40A、60A






Test Range

 40μΩ～300mΩ  （60A）

50μΩ～500mΩ  （40A）

100μΩ～1Ω    （20A）

500μΩ～2Ω    （10A）

1mΩ～4Ω       （5A）

 Accuracy：±(0.2%+2digit)
10Ω-20KΩ      （<20mA） Accuracy：±(0.5%+2digit)
Resolution 0.1μΩ
Data Storage 1000 groups
Working Condition Temperature:0℃～40℃

Ambient humidity：≤90%RH，(non condensed)
Power Supply AC 220V±10V，50Hz±1 Hz Fuse 5A
Max Consumption 500W
Dimension Host：405×230×355（mm）

Accessories：360×260×180（mm）
Weight Host:15.1KG  Accessories:7.1KG
Test Line Standard 13m Length can be customized

At Lucyelec Test Equipment Co., Ltd., we take pride in offering the high-qualified transformer wind resistance meter. We also call it DC resistance tester. This equipment is designed to provide precise and reliable measurements of DC resistance, making it an essential tool for professionals in the electrical and power industry.

Service: The Winding resistance tester will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

If you have any enquiry about quotation or cooperation, please contact by WhatsAPP: +86-15194785871, or email us at info@lucyelec.com  Our sales representative will reply you within 24 hours. Thank you for your interest in our products.
