Description

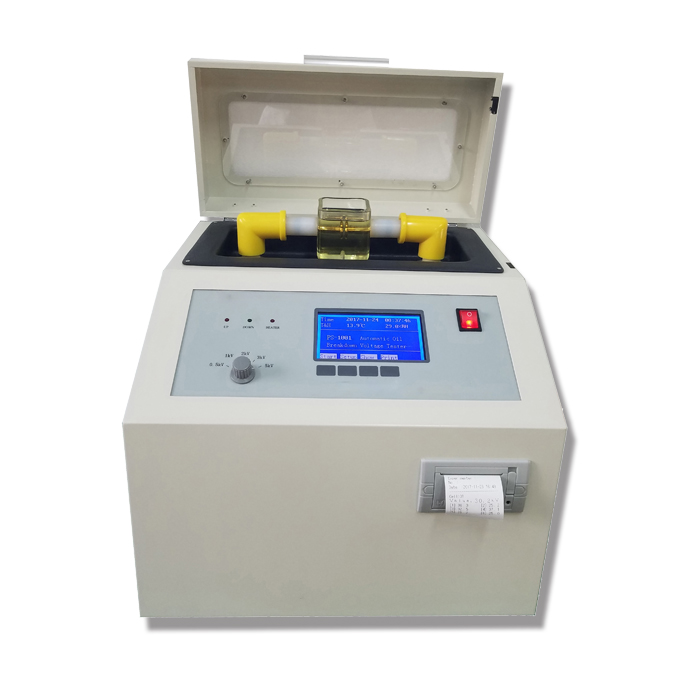

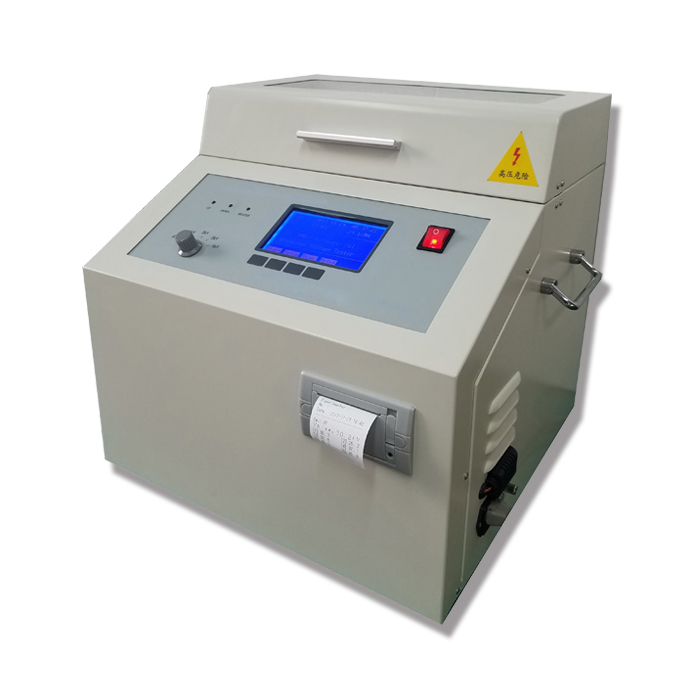

Lucyelec 80KV 100KV Transformer Oil BDV Test Kit

Model: BDV-1001 (80kV, 100kV available)

General Descriptions:

Transformer Oil Dielectric Strength Tester, also named BDV Oil Tester, Breakdown voltage test, Insulation Oil Tester. BDV-1001 dielectric strength tester is

highly accurate and all digital, developed by our company’s scientific research technicians according to international standard. The machine is easy to

operate and beautiful in shape. Because of the full automatic digital microcomputer control, the measurement accuracy is high, the anti-interference ability

is strong, safe and reliable to operate.

Features and Advantages:

1.The instrument is controlled by a large capacity single chip microcomputer, and the work is stable and reliable.

2.There is a wide range watchdog circuit in the instrument to eliminate the phenomenon of death.

3.A variety of operation options, the instrument with GB1986, GB2002 ,IEC156,ASTM D877,ASTM D1816 five national standard methods and custom operation, can adapt to different users of a variety of choices;

4.An instrument using special glass mold for one time, prevent the occurrence of oil spills and other interference phenomenon;

5.The unique high voltage terminal sampling design of the instrument allows test values to directly enter the A/D converter, avoiding the errors caused by analog circuits, and making the measurement results more accurate.

6.The instrument has the functions of over current, over-voltage, short circuit and so on, and has very strong anti-interference ability and good electromagnetic compatibility.

7.Portable structure, easy to move, easy to use both inside and outside.

 Technical Specification:

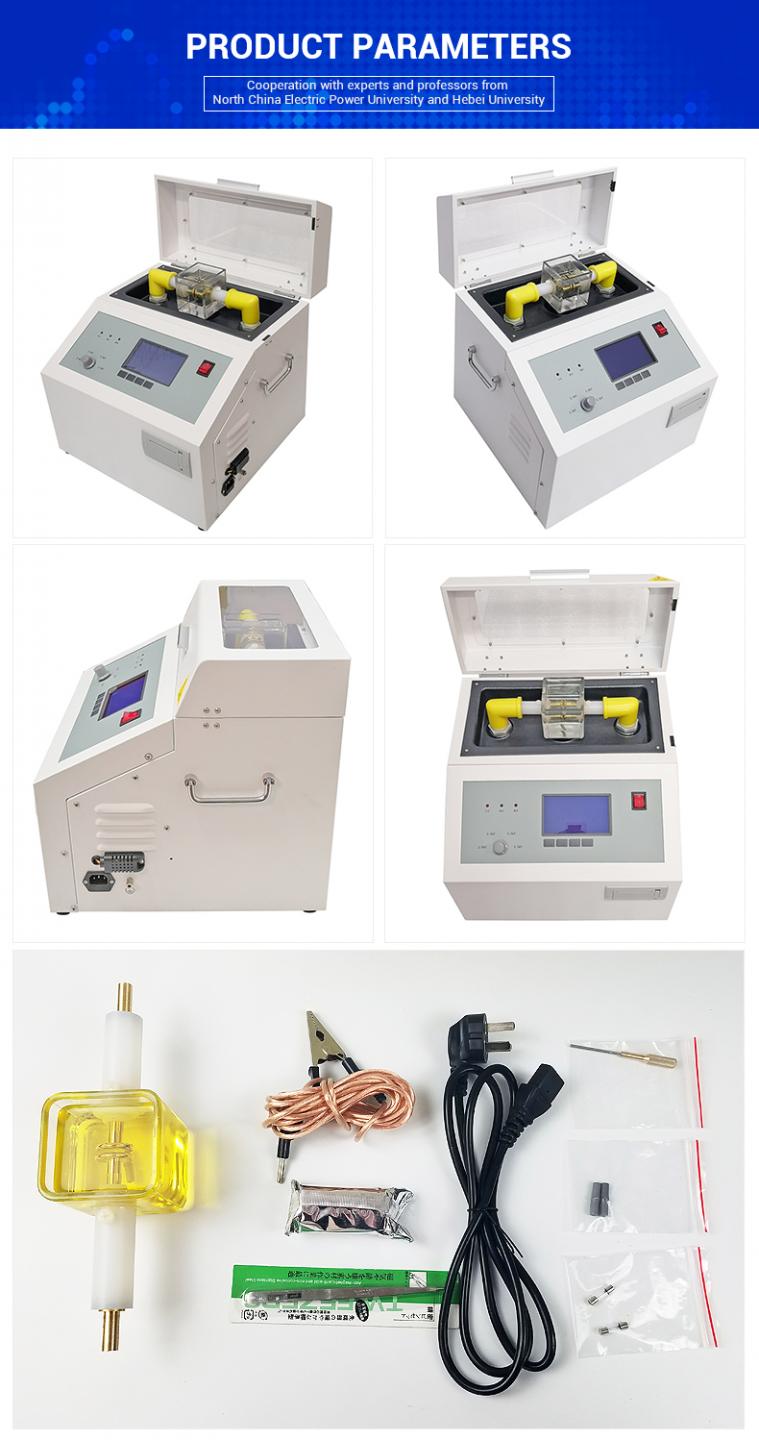

Oil BDV Electrodes and Accessories

More Transformer Oil Test Kits

Lucyelec Single Cup Transformer Oil BDV Test Kit Different Models Available.

Product names：Transformer oil bdv tester, BDV Tester Kit, portable BDV measuring kit, BDV of transformer oil, transformer oil breakdown voltage tester, Automatic transformer oil dielectric stength tester, breakdown voltage of transformer oil, Dielectric Strength of Transformer Oil, transformer dielectric oil test equipment, insulation oil tester, oil pressure tester, oil dielectric strength tester, insulation oil dielectric strength tester, insulation oil pressure tester, automatic insulation oil tester, automatic oil tester, portable oil pressure test device
