Automatic Insulating Oil Dielectric Strength Tester

Home Petroleum/Oil Test Set Automatic Insulating Oil Dielectric Strength Tester

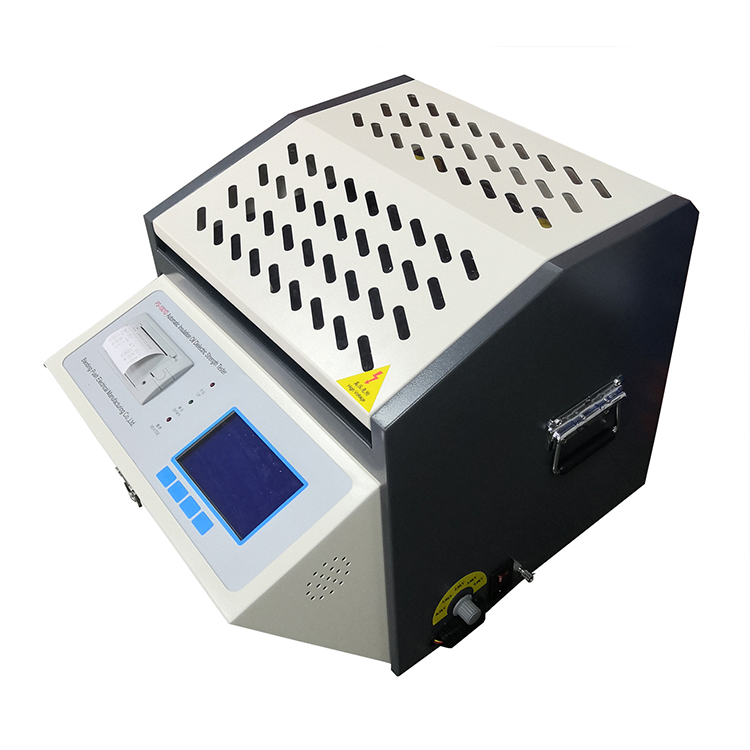

[caption id="attachment_396" align="alignnone" width="750"]oil bdv tester (3) oil bdv tester[/caption]

Automatic Insulating Oil Dielectric Strength Tester

Automatic insulating oil dielectric strength tester also named breakdown voltage(BDV) tester for transformer oil, which indicates its ability to resist electrical stress in oil filled electrical equipment. Lucyelec Test Equipment Co., Ltd. can supply you single cup, three cups, and six cups Oil BDV tester with stable performance and favorable price. Please feel free to ask if any inquiry.

Strong adaptability, easy to carry, can be used for laboratory and outdoor field testing. Welcome to inquiry more.

Petroleum/Oil Test Set, Transformer Oil BDV Tester, Featured Products Tags: , , ,

Description

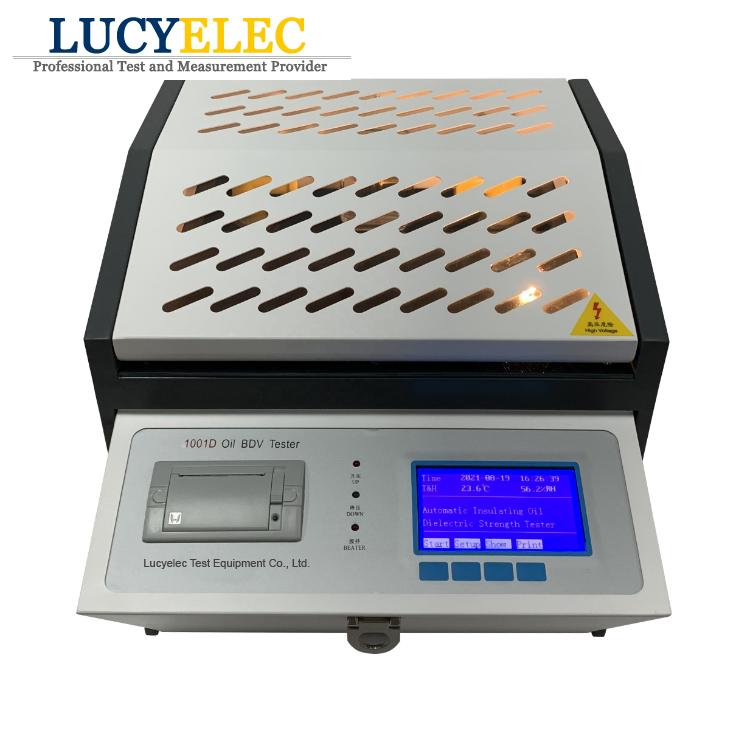

Automatic Insulating Oil Dielectric Strength Tester

Model: BDV-1001D (80kV, 100kV available)

General Descriptions:

Automatic insulating oil dielectric strength tester also named breakdown voltage(BDV) tester for transformer oil, which indicates its ability to resist electrical stress in oil filled electrical equipment. Lucyelec Test Equipment Co., Ltd. can supply you single cup, three cups, and six cups Oil BDV tester with stable performance and favorable price. Please feel free to ask if any inquiry.

Features and Advantages:

1. Conform to multiple standards (IEC60156, ASTM D1816, ASTM D877), and user-defined programs.

2. Capable of measuring the dielectric breakdown voltage up to 100KV.

3. 5.4 inch LCD screen, easy operation and user-friendly. Can display environmental temperature, humidity, and real time display.

4. Fully auto-measuring, data storage, and print.

5. Automatic data storage if power failure.

6. With over-voltage, over-current, H.V. limit switch alarm functions, to make sure the operator more safer.

7. Strong anti-jamming function.

8. Unique design in circuit and softwaremake sure the stable and reliable performance.

9. USB interface or wireless transmission function is optional.

 Technical Specification:

    Output voltage 0~80 kV (0-100KV on request)
    Electrode Type Spherical, semi-spherical, disk

Standard 2.5mm (adjustable);
    Step-up transformer  capacity 1.5 kVA
    Rising rate of voltage 0.5~5.0 kV/s (0.5 kV/s, 1kV/s, 2.0kV/s, 3.0kV/s, 5.0kV/s)
    Measurement accuracy 1%
    Supply voltage AC 110/220 V ±10%
    Power frequency 50/60 Hz ±2%
    Power 200w
    Working temperature 0~40℃
    Working humidity <85 % RH
    Dimension 410×390×375 (mm)
    Net weight 29kg

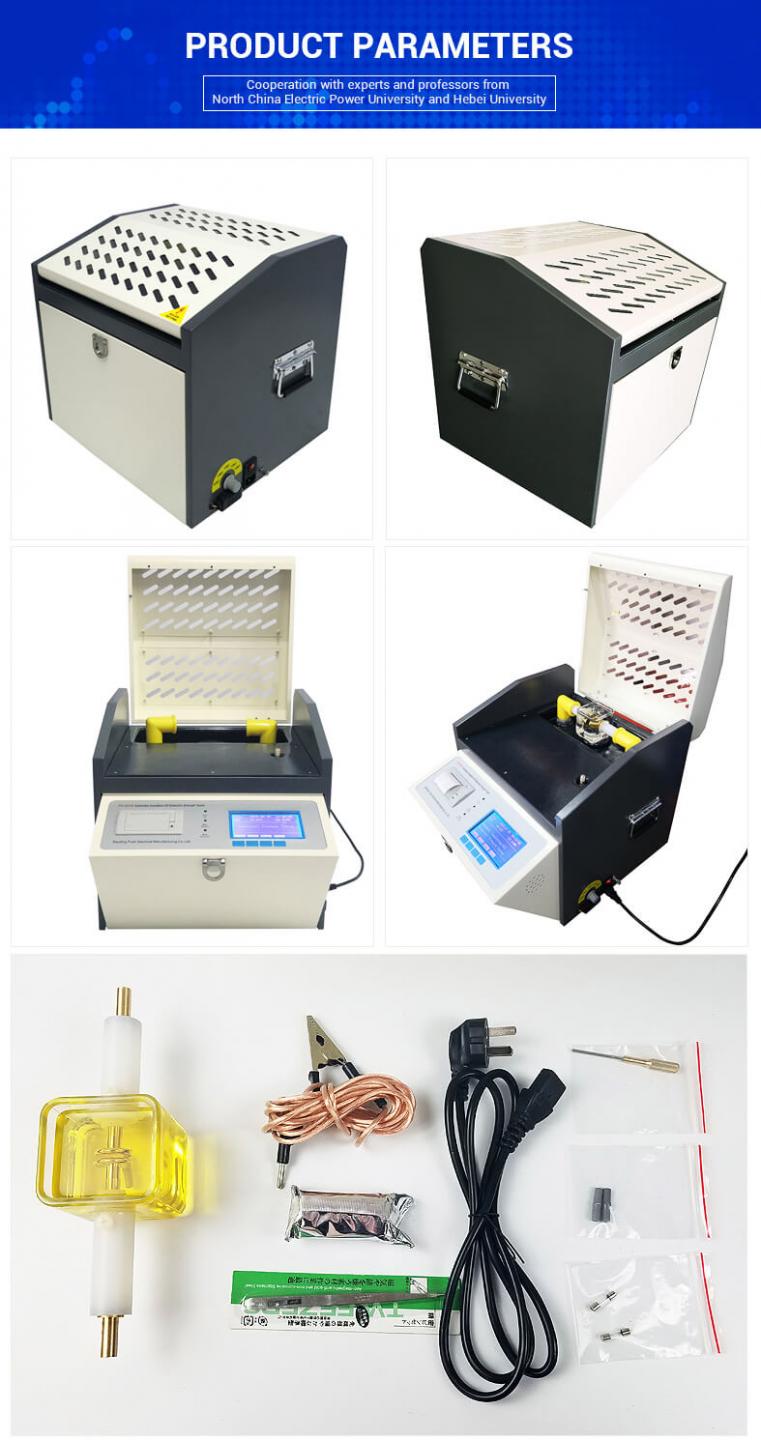

BDV-1001D transformer oil tester

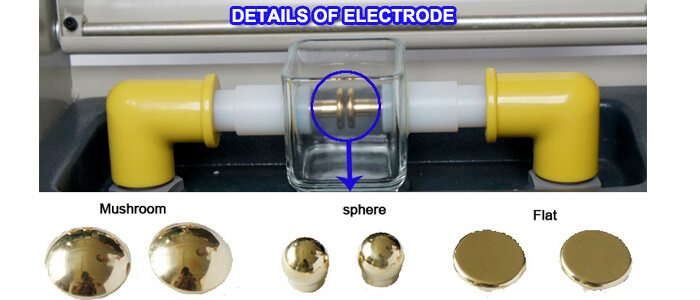

Oil BDV Electrodes and Accessories

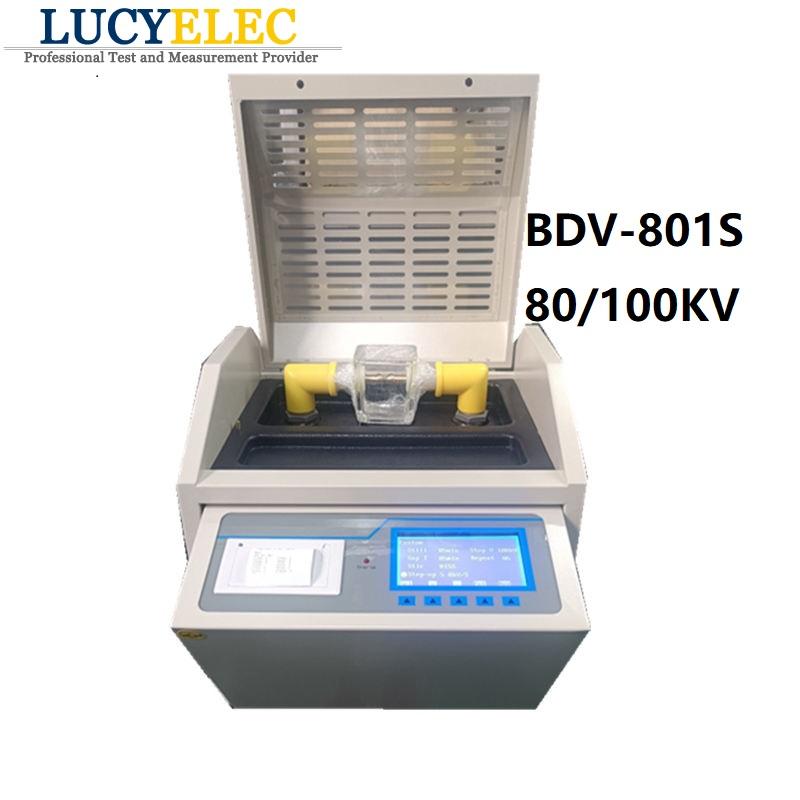

More Insulating Oil Dielectric Strength Tester

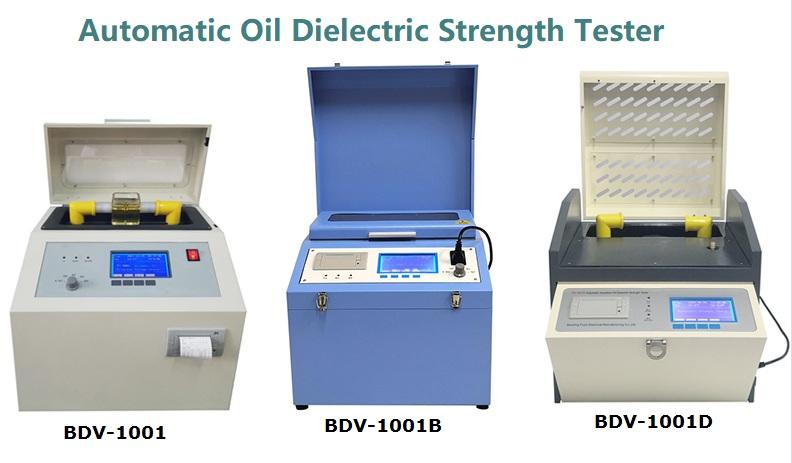

Lucyelec Single Cup Transformer Oil BDV Tester Different Models Available
