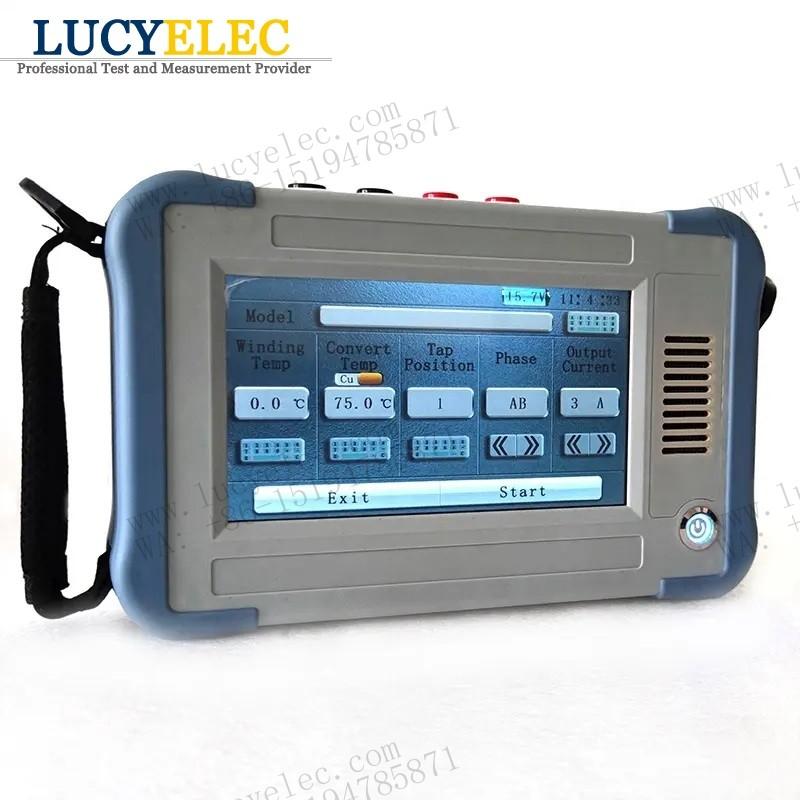

Lucyelec winding resistance meter[/caption] [caption id="attachment_940" align="aligncenter" width="640"]

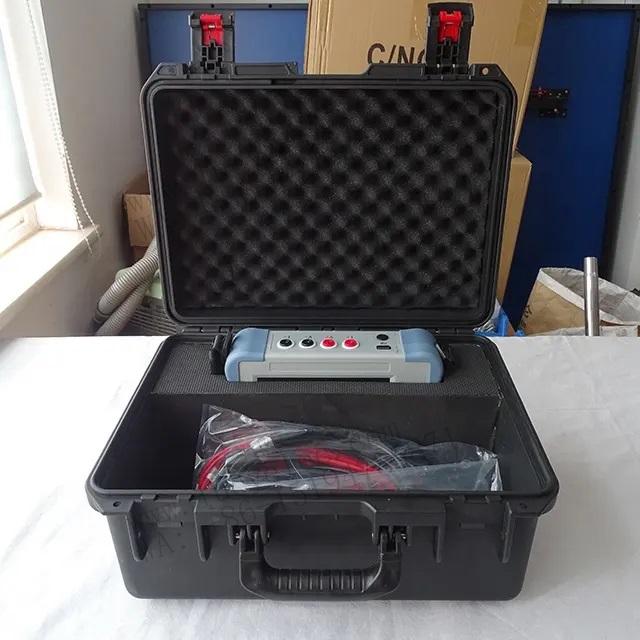

DC winding resistance meter[/caption]

Lucyelec Test Equipment Transformer Winding Resistance Meter

ZSR10C Handheld Transformer Winding Resistance Meter supplied by Baoding Lucyelec Test Equipment Co., Ltd.

DC resistance measurement of transformers is an essential test item in manufacturing processes (semi-finished/finished product inspections), installation, overhauling, tap changer adjustments, acceptance tests, and preventive maintenance tests conducted by power utilities. This test verifies:
○ Welding quality of winding joints
○ Presence of inter-turn short circuits
○ Proper contact of tap changer positions
○ Alignment between actual and indicated tap positions
○ Integrity of leads and parallel conductors

Features and Advantages: 1.High output currents 2.Repeatable results 3.Strong anti-interference capabilities 4.Comprehensive protection functions 5.Automated control via high-speed microcontroller 6.Automatic discharge with audible alerts 7.High precision and user-friendly operation

Description

Lucyelec Test Equipment Transformer Winding Resistance Meter

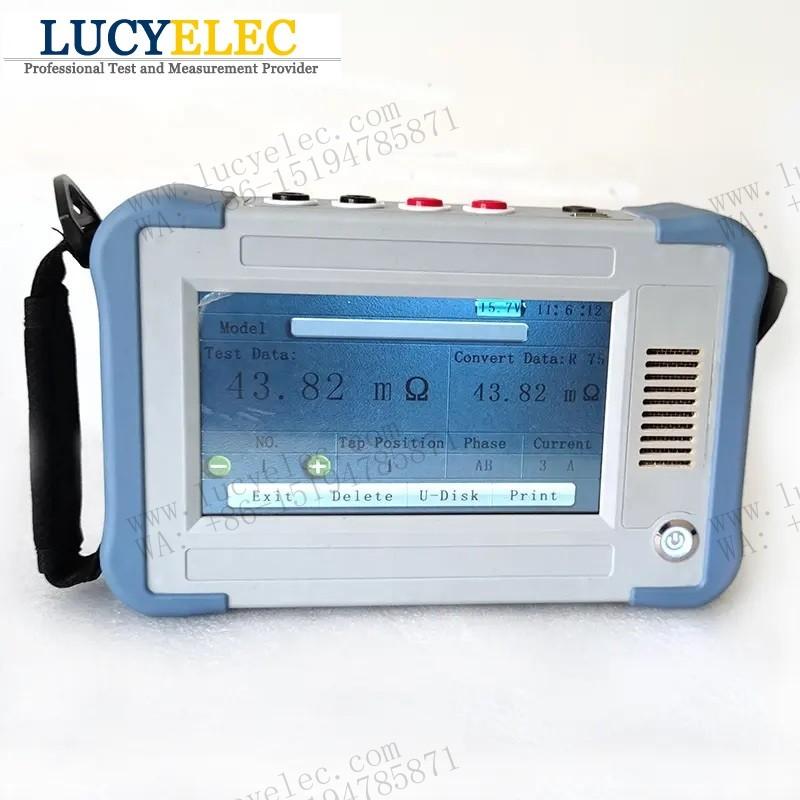

Model: ZSR10C Handheld transformer winding resistance meter, Bluetooth printer is optional

Ⅰ.Brief Introduction of Winding Resistance Meter

DC winding resistance meter

To address the need for rapid DC resistance measurements, our company has developed the XX10C Handheld DC Resistance Tester. Featuring advanced power technology, this compact and lightweight instrument offers:
○ High output currents
○ Repeatable results
○ Strong anti-interference capabilities
○ Comprehensive protection functions
○ Automated control via high-speed microcontroller
○ Automatic discharge with audible alerts
○ High precision and user-friendly operation

Ⅱ. Technical Specification and Operating Conditions of Transformer Winding Resistance Meter

Technical Specifications

Parameter	Specifications
Test Current	<20mA, 40mA, 200mA, 1A, 3A, 10A
Measurement Range	100Ω-50kΩ, 1Ω-200Ω, 100mΩ-50Ω, 10mΩ-10Ω, 5mΩ-3Ω, 0.5mΩ-0.2Ω
Accuracy	±(0.5% + 2 digits) / ±(0.2% + 2 digits) (current-dependent)
Resolution	0.1μΩ
Operation	Touchscreen
Dimensions (L×W×H)	Main Unit: 252×160×65 mm; Case: 425×335×210 mm
Weight	Main Unit: 2 kg; Case (with main unit): 8 kg
Battery	14.8V 5200mAh Li-ion
Test Lead Length	Standard 5m (customizable)

2. Operating Conditions:

Ambient Temperature: 0℃ to 40℃

Relative Humidity: ≤85% RH

Power Supply: Built-in battery

Frequency: (50±1) Hz

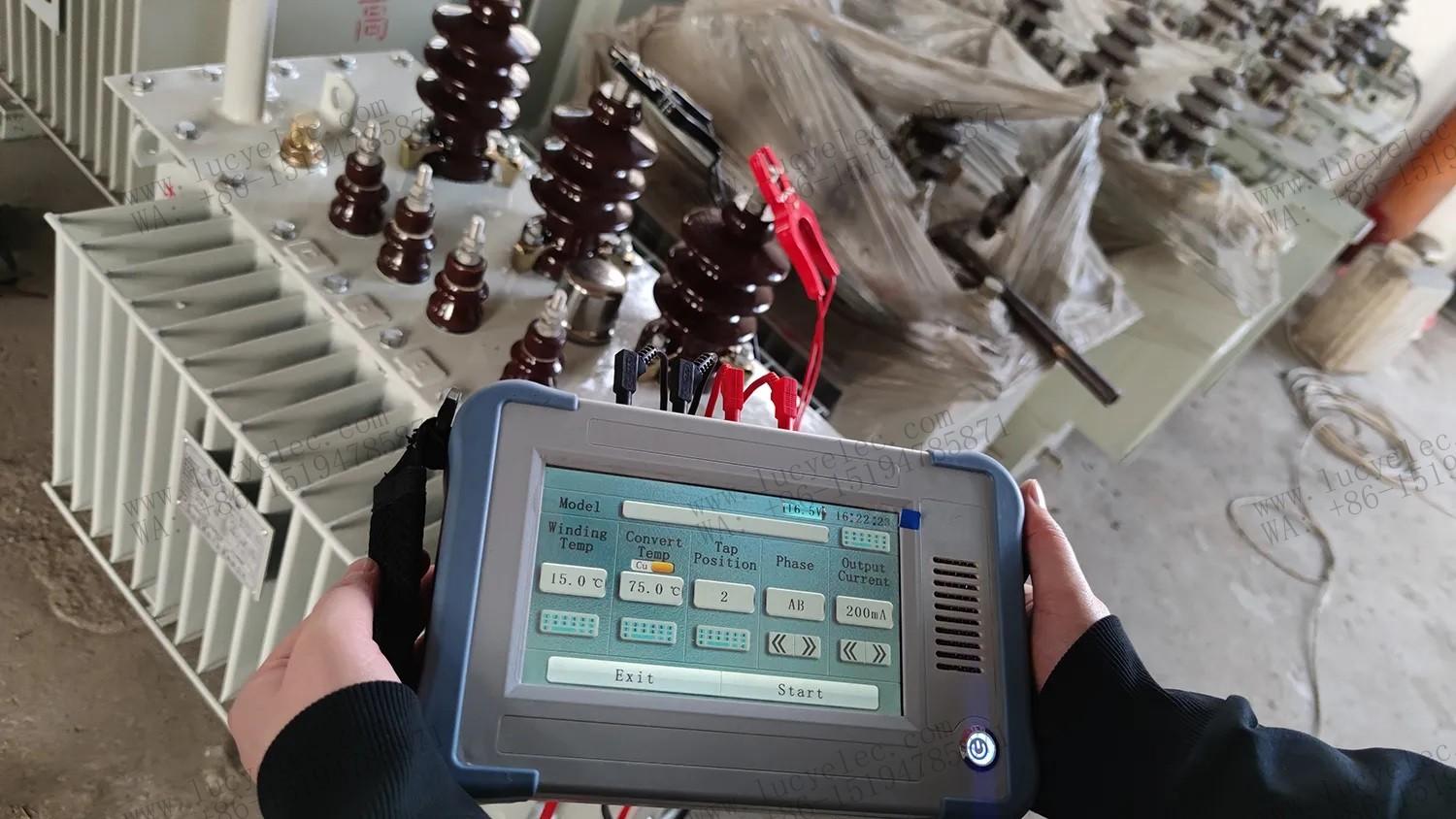

ZSR10C Handheld transformer winding resistance meter operating with power transformer

portable winding resistance meter

Usage: The winding resistance tester is used for checking the welding quality of the winding joints and whether the windings have inter-turn short circuits, check whether the contact of each position of the voltage tap switch is in good condition, whether the actual position of the tap changer matches the indicated position, whether the lead wire is broken, and the multistranded wire is wound in parallel. Whether there is stock breakage, etc.

At Lucyelec Test Equipment Co., Ltd., we take pride in offering the high-qualified transformer wind resistance tester. We also call it DC resistance tester. This equipment is designed to provide precise and reliable measurements of DC resistance, making it an essential tool for professionals in the electrical and power industry.

Service: The Winding resistance tester will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.
