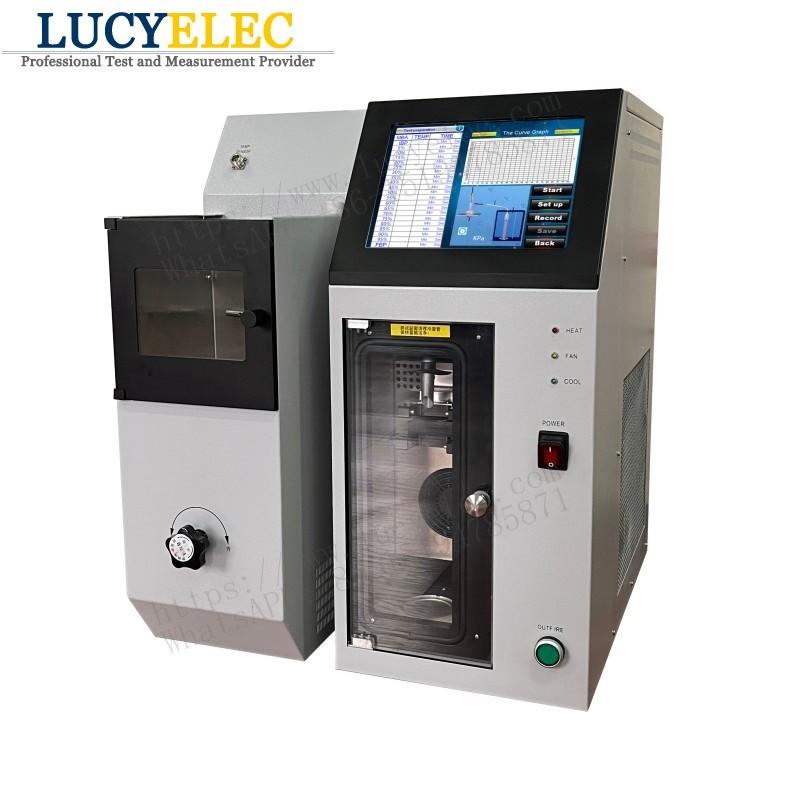

automatic distillation apparatus[/caption] [caption id="attachment_948" align="aligncenter" width="800"]

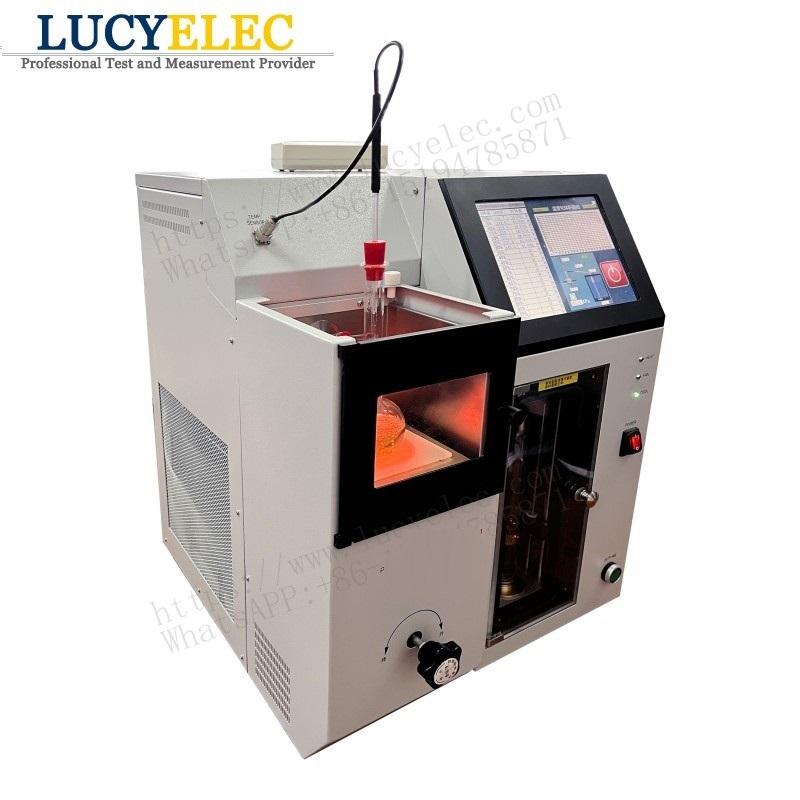

ASTM D86 distillation apparatus[/caption]

Lucyelec Petroleum ASTM D86 Automatic Fractional Distillation Apparatus

Lucyelec DCZL-86ZASTM D86 Automatic Fractional Distillation Apparatus is used for determination of distillation range of petroleum products according to the test method in GB/T 6536, complying with ASTM D86 and IP123. This instrument will automatically control the heating process and distillation speed, as well as record and print all record data.

Suitable for natural gasoline (stable light hydrocarbon), motor gasoline, aviation gasoline, jet fuel, special boiling point solvent, naphtha, mineral spirits, kerosene, diesel fuel, gas oil, distillate fuels.

Feature: Fully automated; 10” touch colorful LCD screen; Automatically heating control ;Provide initial boiling point and final boiling point temperature; Automatically measuring of local atmospheric pressure;Stopping of test by the steam temperature available

Description

Lucyelec Petroleum ASTM D86 Automatic Fractional Distillation Apparatus

Model: DCZL-86Z

Ⅰ. General Description of Automatic Distillation Apparatus:

DCZL-86Z ASTM D86 Automatic Fractional Distillation Apparatus is used for determination of distillation range of petroleum products according to the test method in GB/T 6536, complying with ASTM D86 and IP123. This instrument will automatically control the heating process and distillation speed, as well as record and print all record data.

This instrument complies with GB/T6536-2010. The user can enable/disenable automatic pressure calibration. The system has built-in atmospheric pressure measuring device with high accuracy. In addition, the instrument is equipped with temperature, pressure, auxiliary equipment, fire extinguisher and level tracking equipment etc for automatic monitoring. In case of malfunction, the system will automatically prompt for immediate measures to prevent accidents.

Ⅱ. Features and Advantages:
(1) Automatically controlling of test process. 10″ touch LCD for display of temperature, volume and curves during the whole process.
(2) Level tracking system consists of American Haydon high-stepping linear motor, imported integral linear ball screw circumferential positioning laser tracker (Japan KEYENCE). The cooling tube and cylinder room are refrigerated mechanically; imported Danfoss(Secop) compressor. Circulate in the cooling medium. Check and add cooling water every 2 years.
(3) Automatically heating control of distillation over, the sample can be heated to 95% of the flow rate from initial boiling point controlled within 4~5ml per minute.
(4) Provide initial boiling point and final boiling point temperature, and various percentage temperature and flow rate.
(5) Automatically measuring of local atmospheric pressure, and corrected to standard atmospheric pressure.
(6) Stopping of test by the steam temperature available.
(7) The test result can be stored, queried and printed.

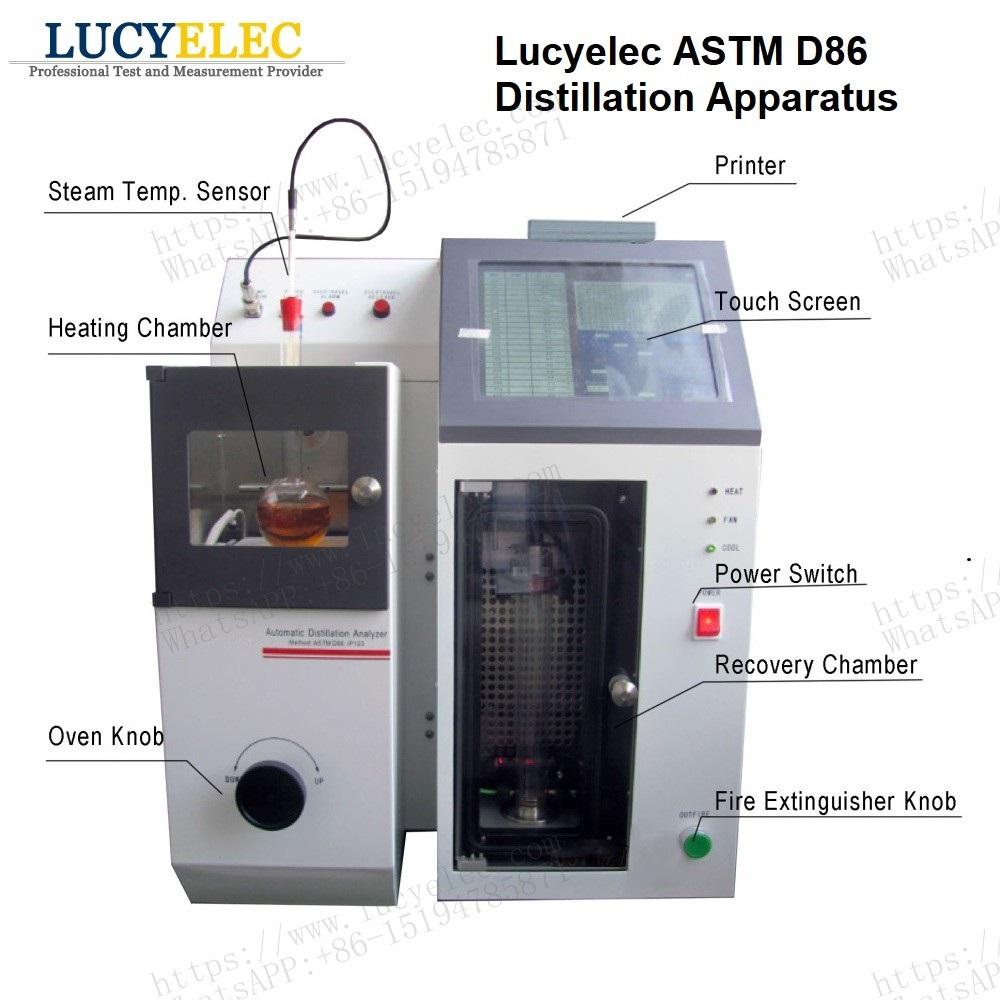

Ⅲ. Image Details:

ASTM D86 distillation

Ⅳ. Technical Specification of Petroleum ASTM D86 Fractional Automatic Distillation Apparatus:

Power Supply	AC220V±10% 50Hz
Heating power	2KW
Cooling power	0.5KW
Steam temperature	0-400ºC
Oven temperature	0-500ºC
Refrigeration temperature	0-60ºC
Refrigeration accuracy	±1ºC
Temperature measurement accuracy	±0.1ºC

Volume accuracy	±0.1ml
Fire alarm	extinguish by nitrogen (prepared by customer)
Sample state	suitable for natural gasoline (stable light hydrocarbon), motor gasoline, aviation gasoline, jet fuel, special boiling point solvent, naphtha, mineral spirits, kerosene, diesel fuel, gas oil, distillate fuels.

Indoor working environment: temperature: 10-38°C (recommend: 10-28ºC); humidity≤70%.

Distillation Apparatus

Usage: The DCZL-86Z Automatic ASTM D86 Distillation Apparatus is used for determination of distillation range of petroleum products according to the test method in GB/T 6536, complying with ASTM D86 and IP123. This instrument will automatically control the heating process and distillation speed, as well as record and print all record data.

At Lucyelec Test Equipment Co., Ltd., we take pride in offering the high-qualified Petroleum ASTM D86 distillation apparatus. We also call it petroleum distillation apparatus. In order to facilitate human-machine interaction, the system adopts true color touch screen, the user can set parameters via the touch screen, realizing real-time monitoring of operating parameters, recording critical temperature, tracing temperature-volume curve, storing 256 groups of test data, and querying of history data of various oil.

Service: This petroleum Fractional Distillation Apparatus will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

If you have any enquiry about quotation or cooperation, please contact by WhatsAPP: +86-15194785871, or email us at info@lucyelec.com Our sales representative will reply you within 24 hours. Thank you for your interest in our products.
