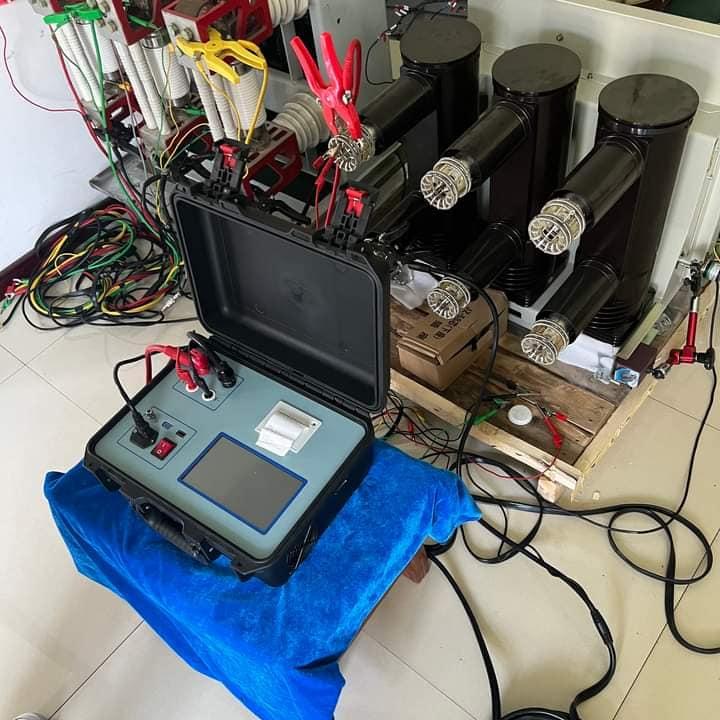

MOM200A contact resistance meter[/caption]

Lucyelec MOM200A Micro Ohmmeter Contact Resistance Meter

Lucyelec MOM200A Micro Ohmmeter Contact Resistance Meter, also named loop resistance tester and contact resistance tester. It is based on IEC Standard to design for high accurate and digital switches testing. The instrument adopts high frequency superpower constant current switch power source technology, can test micro ohm contact resistance. Wildly use in varies switch and electric appliance contact resistance test loop resistance test cable wires test weld contact resistance test. The machine has high accuracy and great stability, which can meet the requirement of electric power supplier department for high voltage switch maintaining and loop resistance tester.

Features: 7 inch color touch screen; Intelligent power management technology; High output voltage and wide measurement range; high accuracy constant current and quickly test; Built-in printer; With Bluetooth function, and RS232, USB disk

Contact Resistance Tester, HV Switch Tester Tags: Contact Resistance Tester, Micro Ohmmeter, loop resistance tester

Description

Lucyelec MOM200A Micro Ohmmeter Contact Resistance Meter

Model: MOM-200 Micro Ohmmeter

Ⅰ.Brief Introduction of Contact Resistance Meter

Contact Resistance Meter also named loop resistance tester and micro ohmmeter. This Portable loop resistance tester (micro Ohmmeter) is based on IEC Standard to design for high accurate and digital switches testing. The instrument adopts high frequency superpower constant current switch power source technology, can test micro ohm contact resistance. Wildly use in varies switch and electric appliance contact resistance test loop resistance test cable wires test weld contact resistance test. The machine has high accuracy and great stability, which can meet the requirement of electric power supplier department for high voltage switch maintaining and loop resistance tester.

II.Performance characteristics

The machine can be controlled by the phone using special software so that the test result can save the phone and queried.
The machine has multiple Protection function such as over hot of power protection disconnection protection and outage protection during the test.
Intelligent power management technology, save energy to avoid the machine become hot
High output voltage and wide measurement range
Quickly test, The test current is from high accuracy constant current,which don’t need to regulate manually.
The four-terminal wiring method is used to effectively eliminate the influence of the resistance of the test line on the test results.
7 inch color touch screen, English version
The instrument comes with a perpetual calendar clock and power-off storage, which can store 1000 sets of test data, which can be consulted at any time
The instrument has Bluetooth communication, RS232 communication and USB interface for computer communication and U disk data storage.
Micro printer to print the result

Ⅲ. Image Details of MOM-200 Contact Resistance Meter:

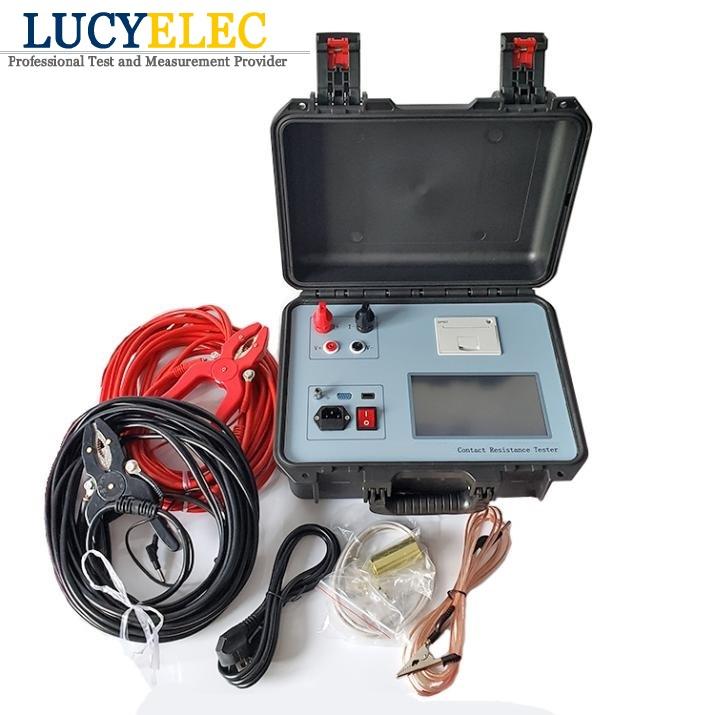

lucyelec micro ohmmeter

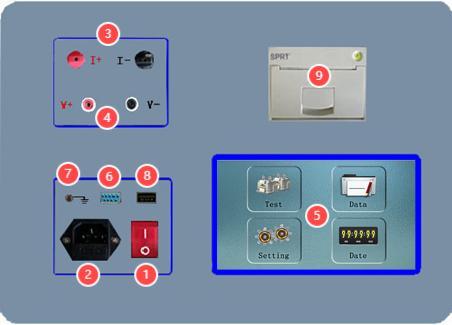

micro ohmmeter screen

Power switch: Press”I”to turn on the tester, press “O”to turn off the tester
AC220V: AC220V power supply
I+, I- : Output current terminal,which provides the constant current for the tested object.
V+,V- : To provide the input voltage terminal of the tested object
LCD:320*240 Color LCD screen
RS232: Serial port output terminal
: Ground terminal
USB: USB port for U-disk
Printer:Built-in microprinter

Ⅳ. Technical Specification:

MOM-200 Contact Resistance Tester

Test Current	50A, 100A, 150A, 200A
Measuring Range	0~100mΩ(50A) ; 0~50mΩ(100A); 0~25mΩ(150A); 0~20mΩ(200A)
Resolution	0.1µΩ
Accuracy	±(0.5%±2 digits)
Power Consumption	1000W
Test method	Constant test
Power Supply	100-240V AC, 50/60Hz
Operating temperature	0~40ºC
Relative Humidity	0-90%, non-condensing
Length of Test Wire	Standard 10m, (Customized length)
Dimensions	Host: 360290170mm, Accessory Case: 360290170mm
Weight	15KG (Instrument+accessories case)

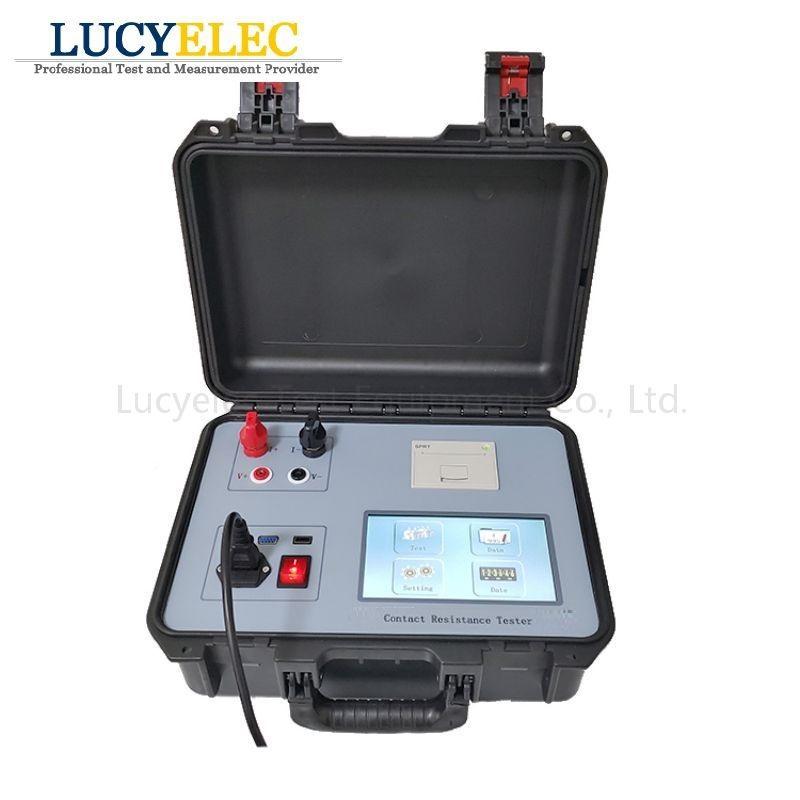

Contact resistance meter

Service: This Lucyelec MOM200A Micro Ohmmeter Contact Resistance Meter will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.
