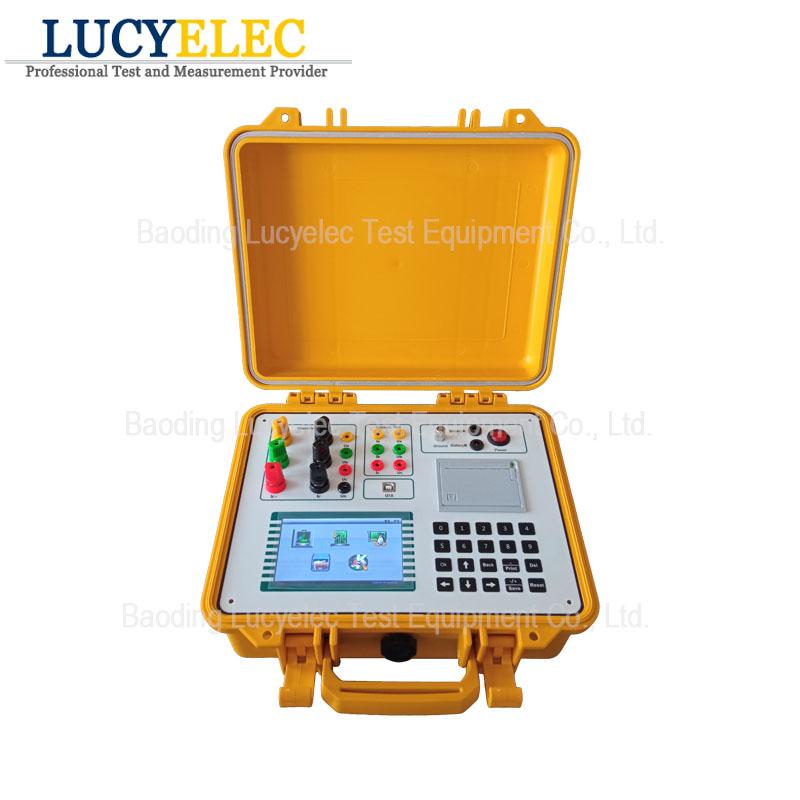

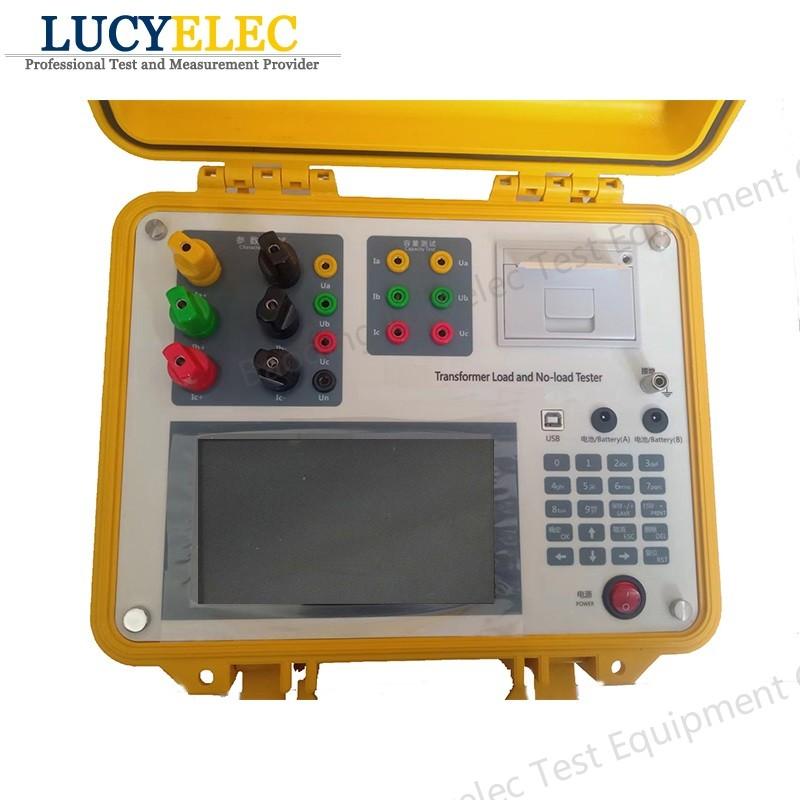

[caption id="attachment_847" align="aligncenter" width="800"]

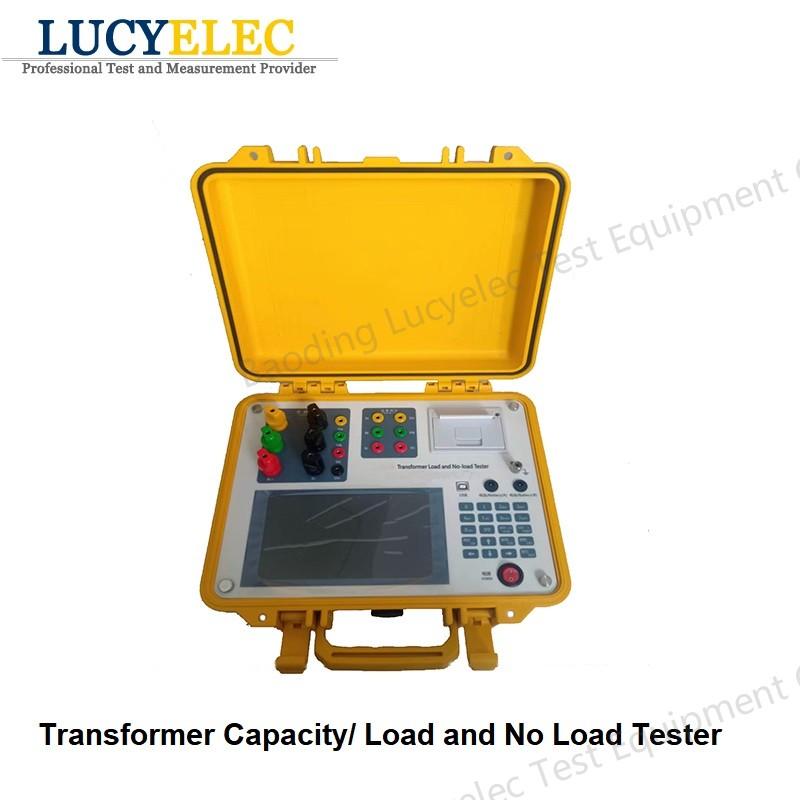

transformer capacity tester[/caption] [caption id="attachment_846" align="aligncenter" width="800"]

transformer load and no load tester[/caption]

Lucyelec CCT-01 Transformer Capacity and Characteristics Tester

CCT-01 transformer capacity and characteristic tester is a multi-functional measuring instrument, which is equivalent to transformer capacity tester and transformer characteristic tester. It can measure transformer capacity, no-load current, no-load loss, load loss, impedance voltage and so on.

This product has many advantages such as small dimension, light , high accuracy, good stability, simple operation and so on. It can replace of the commonly many meters, you can measure the transformer loss and capacity with simple wiring and convenient testing in one. Welcomt to contact Lucyelec for more details

Description

Lucyelec CCT-01 Transformer Capacity and Characteristics Tester

General Descriptions:

CCT-01 transformer capacity and characteristic tester is a multi-functional measuring instrument, which is equivalent to transformer capacity tester and transformer load and no load tester. It can be used for test transformer capacity, no-load current, no-load loss, load loss, impedance voltage and so on.

Features and Advantages:

We can measure a variety of distribution transformer, power transformer capacityinstead of the additional extra power. It is more convenient and efficient.
Combined with the external powersource, voltage, current regulator equipment etc, it can measures various transformer parameter such as no-load current, no-load loss, impedance voltage, load loss and so on.
Characteristic test of transformer, test range is wide,flexible configured.only through the simple connection to current transformer and voltage transformer, test scope can be enlarged to high-grade power transformer.
Short-circuit the terminals of cable,humanization design,with lock,easy connected to fasten units of transformation.
All results are automatically carried out relevant correction. You only need to input the related parameters (such as temperature, load adjustment coefficientsetc), then the instrument can automatically calibrate such as waveform deformity correction, temperature correction, correction of non rated voltage, rated current correction,so that the accurate is much higher
The maximumvoltage is up to 750V and the maximum current is up to 100A range with protection circuit in it,when you make the characteristic test of transformer.don’t worry the precision and damage of the instrument due to in-proper shift.
The voltage and current range can be very flexibleand easy to expand by connecting the external CT or VT
It has large screen, high brightness LCD display, English menu and operation tips, friendly man-machine interface andwide temperature tolerance, brightness adjustable type LCD screen, which can adapt to the different temperature. Thermal sensitive printer is set inside the instrument,it can easily print on site.

Technical Specification:

Output range of built-in battery	Voltage：0～10V Current：0～10A
The input range of characteristic test power source	Voltage：0～750V Current：0～100A
Test Accuracy	Voltage, current: ±0.2% Power: ±0.5%（CosΦ>0.1）, ±1.0%（0.02<CosΦ<0.1）
Working temperature	-20~60°C
The requirement of charger	Adapter output 12.6V 1000mA Electric supply AC160V～265V
Insulation	⑴ Insulation resistance between capacity , voltage, current to enclosure ≥100MΩ ⑵ bear the 2kv power frequency (effective value) between the input power and machine enclosure, testing time is 1 minute.
Dimensions	320250120mm
Weight	2.5kg

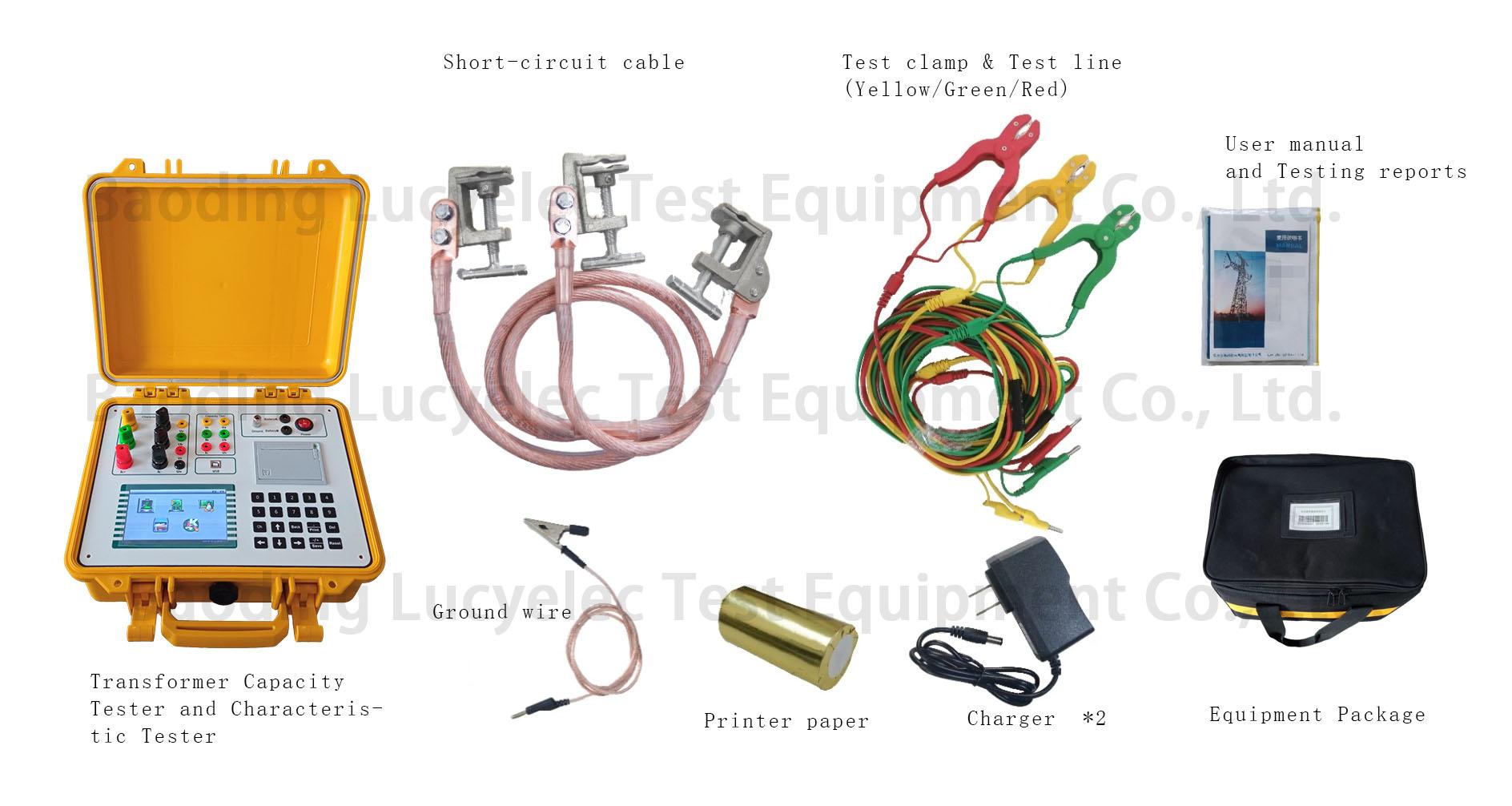

The full set image of Lucyelec CCT-01 Transformer Capacity and Characteristics Tester

The full set of transformer capacity and charateristics tester
