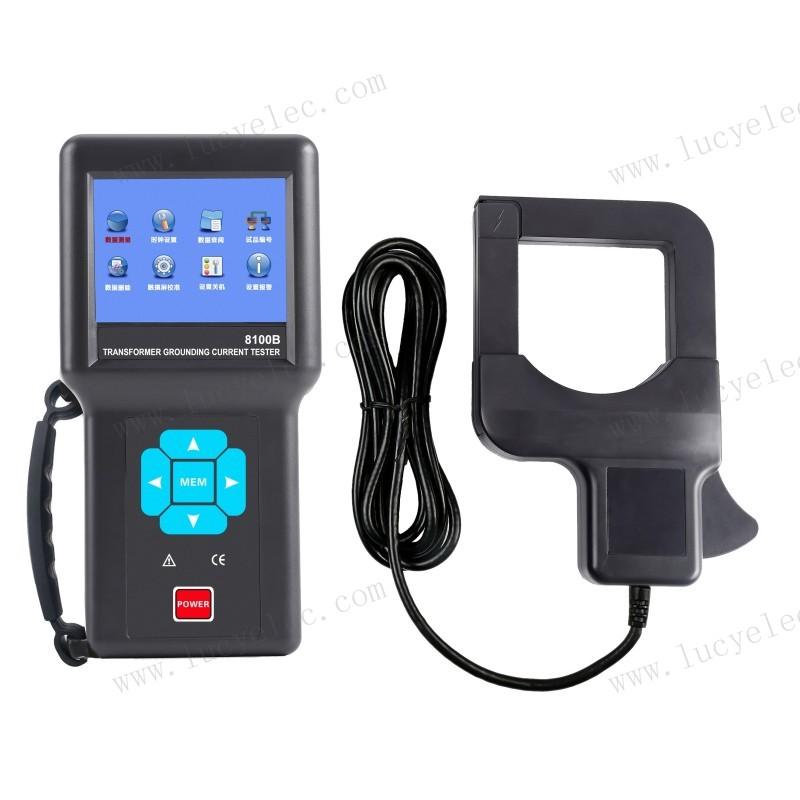

transformer grounding current tester[/caption] [caption id="attachment_859" align="aligncenter" width="800"]

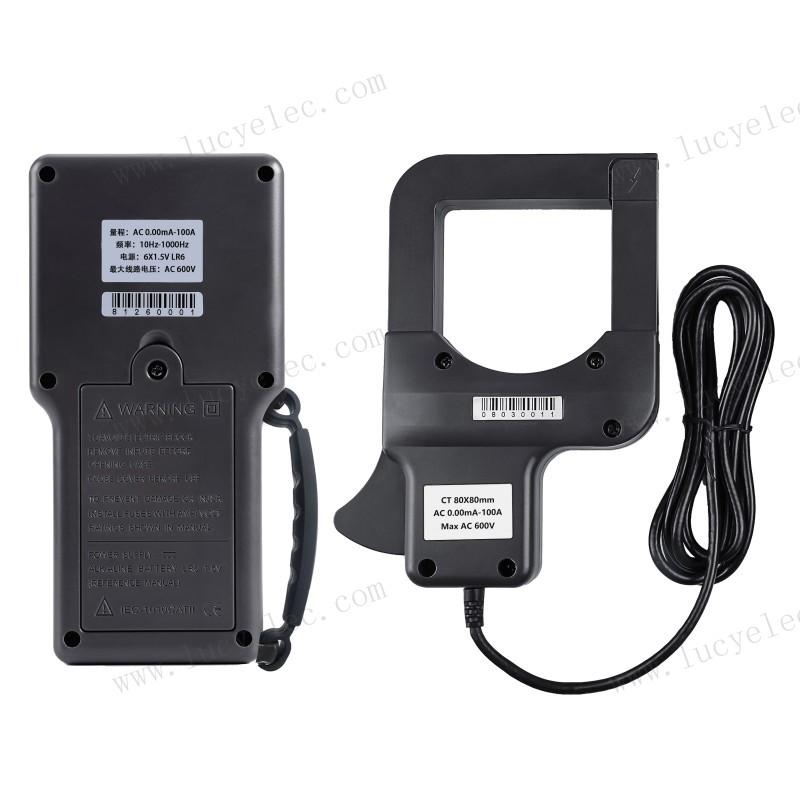

Lucyelec transformer grounding current tester[/caption]

Lucyelec 8100B Transformer Core Grounding Current Tester

8100B Transformer Core Grounding Current Tester is specially designed and manufactured for testing grounding current and leakage current of transformer core in power system on site. The instrument is composed of host meter, current clamp, monitoring software and communication cable. It can find transformer latent faults as soon as possible, which is the main tool to ensure transformer safe running and normal maintenance.

The instrument has anti-interference ability and can be used in the environment of strong magnetic field interference near the transformer. It is mainly apply to the leakage current test of iron core and clamps comment of electrical equipment such as the substations and power station as transformers and reactors. It can also be used for current and leakage current test of lines or equipment in electric power, communication, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. Please contact Lucyelec for more details.

Description

Lucyelec 8100B Transformer Core Grounding Current Tester

General Description:

8100B Transformer Core Grounding Current Tester is specially designed and manufactured for testing grounding current and leakage current of transformer core in power system on site. The instrument is composed of host meter, current clamp, monitoring software and communication cable. The power transformer is an important electrical equipment in the power system, once the fault occurs in the running, it will cause serious consequences to the power system. The normal running of the transformer core is a single grounding point, if there are two or more points grounding at the same time, the iron core and the earth will form a current circuit loop, the maximum current can up to dozens of amperes, will cause the core local overheating or even burned. This instrument can find transformer latent faults as soon as possible, which is the main tool to ensure transformer safe running and normal maintenance.The instrument has anti-interference ability and can be used in the environment of strong magnetic field interference near the transformer. It is mainly apply to the leakage current test of iron core and clamps comment of electrical equipment such as the substations and power station as transformers and reactors. It can also be used for current and leakage current test of lines or equipment in electric power, communication, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields.

Features and Advantages:

The host adopts high-speed microprocessor, 3.5 inch color touch LCD screen, intelligent touch operation, convenient and fast. It can display the magnitude and waveform of the measured current in real time. Adopt FFT transform and digital filter technology to make the test data more accurate. With alarm threshold setting and alarm indication function; Date clock and setting function; Automatic shutdown time function; the function of setting sample number;With USB interface, the stored data can be imported into the computer, and the instrument can store 200 groups of data and waveform.

The current clamp core is made of Permalloy alloy and adopt magnetic shielding technology, which has little influence on the external magnetic field and strong anti-interference ability, ensuring the high precision, high stability and high reliability of uninterrupted measurement all year round. Its clamp jaw diameter is 80mm×80mm, can clamp the cable or grounding line below 80mm, or clamp 96mm×4mm flat steel grounding line, portable clamp design, do not have to disconnect the tested line, non-contact measurement, safe and fast.

Monitoring software has on-line real-time monitoring and historical query function, dynamic display, waveform indication; With alarm value setting and alarm indication; With historical data reading, consult, save, print and other functions.

transformer grounding current tester

Technical Specification

Function	Grounding current test ,AC leakage current and current online test of transformer core
Power Supply	DC9V alkaline batteries（1.5VX6 PCS）
Test Mode	Clamp CT
CT Size	80mmX80mm(can clamp φ80mm cable or 96mmX4mm steel flat grounding line )
Current Range	AC 0mA~100A
Resolution	AC 0.00mA~9.99mA; resolution: 0.01mA;
	AC 10.0mA~99.9mA; resolution: 0.1mA;
	AC 100mA~999mA; resolution: 1mA;
	AC 1.0A~100.0A; resolution: 0.1A;
Accuracy	± (0.5%+5dgt)
Frequency Range	10Hz~1000Hz
Display Mode	3.5 inch color touch LCD(320dotsX240dots)
Operation Mode	Simultaneously with the intelligent touch mode and the button control mode
Host Size	198mmX100mmX45mm
Current Clamp Size	194mmX145mmX40mm
Weight	Host: 550g; current clamp: 780g
LCD Size	Display area: 71mmX53mm
Interference Field	The external electric field 100A close to 10mm about 10mA.
Sampling Rate	About 1 times/second
Data Store	200 groups(power down or replace battery will not loose the data)
Date & Clock	With date and clock setting function
Sample Numbering	With testing point numbering setting function
Auto Shutdown	With automatic shut down or not setting function, after start up 5 minutes will shuts down automatically without any operation
Touch Screen Calibration	With touch screen calibration function
USB Interface	With USB interface, the stored data can imported into the computer
Alarm Setting	Alarm threshold setting range: 10mA～99.99A
Alarm Indication	When the test value exceeds the alarm threshold, the LCD flashes and the buzzer make out sound.
Line Voltage	Line test below AC 600V
Overflow Indication	Over range overflow function: “OL” symbol display
Battery Voltage	When battery voltage drop to 7.2V±0.1V, low battery voltage symbol will display and remind to replace battery. the measurement data still accurate in this time.
Rated Current	Max 180mA
Test Cable Length	Clamp current cable length is 2m
Working Temperature and Humidity	-10℃~40℃; below 80%RH
Storage Temperature and Humidity	-10℃~60℃; below 70%RH
Insulation Strength	AC 2KV/rms (between the screws and shell)
Suitable Safety Standard	IEC1010-1, IEC1010-2-032, Pollution 2, CAT Ⅲ 600V,IEC61326

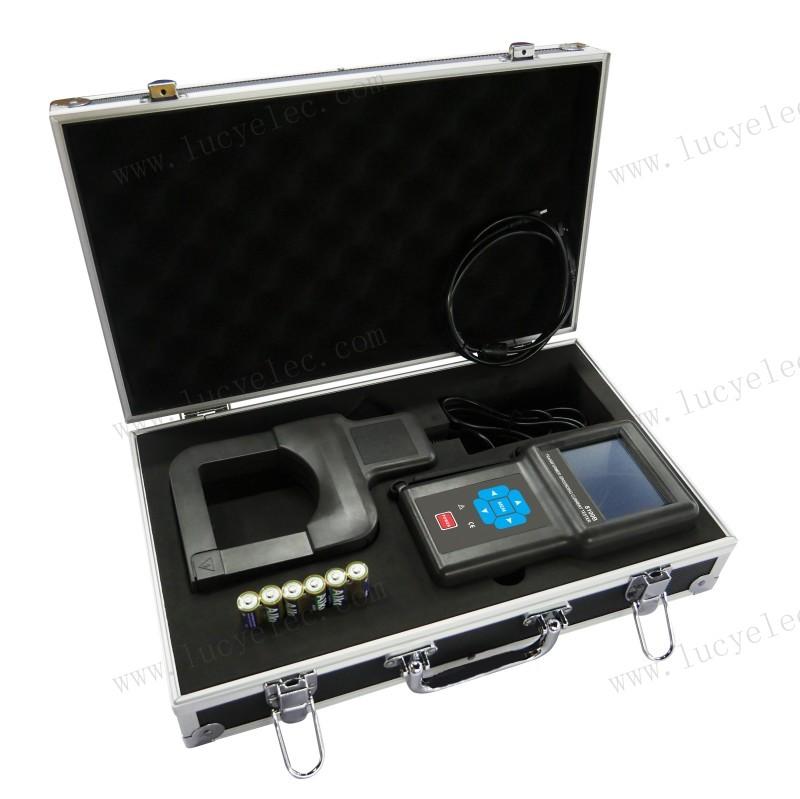

Full Set of 8100B Transformer Core Grounding Current Tester

8100B grounding current tester
