Lucyelec HV Power Frequency Withstand Voltage Test Transformer

Home High Voltage Test Series Lucyelec HV Power Frequency Withstand Voltage Test Transformer

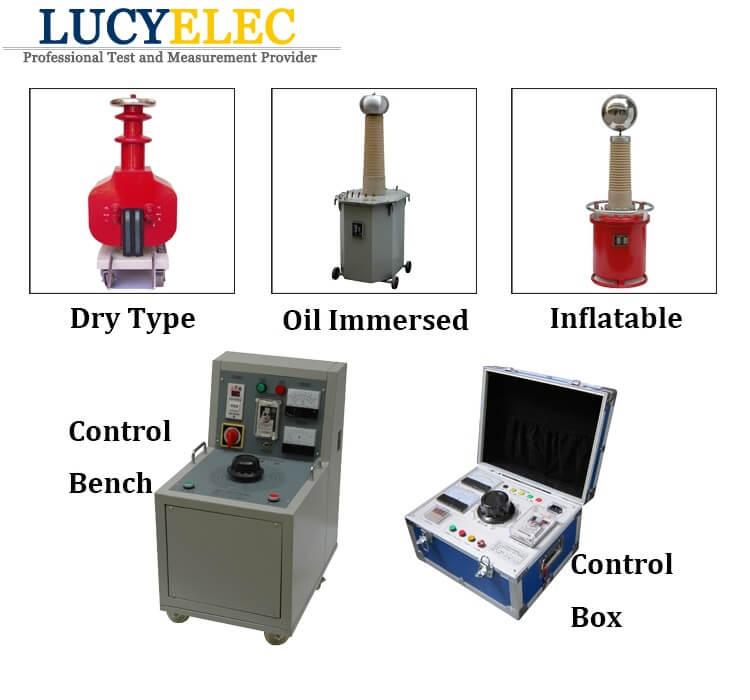

[caption id="attachment_646" align="alignnone" width="750"]HV Test transformer HV Test transformer[/caption]

Lucyelec HV Power Frequency Withstand Voltage Test Transformer

Lucyelec HV Power Frequency Withstand Voltage Test Transformer is performed to examine the insulation strength and whether partial discharge occurs. There are oil-immersed, dry type, and inflatable type testing transformer and intelligent controller for worldwide customer.

Power frequency withstand voltage test is a test that must be done in the factory test of electrical equipment products. For example, circuit breakers, load switches, grounding switches, isolating switches, and switch cabinets. For more oil analysis and electrical test equipments, please contact Lucyelec for more details.

High Voltage Test Series Tags: , ,

Description

Lucyelec HV Power Frequency Withstand Voltage Test Transformer

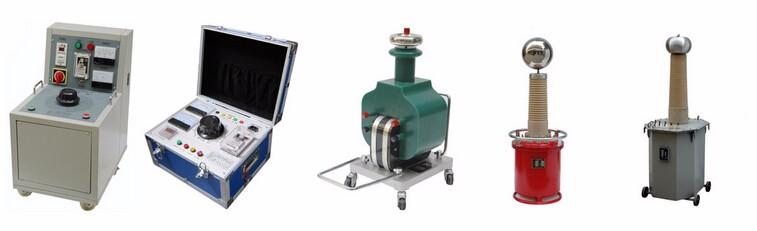

power frequency withstand voltage test system

power frequency withstand voltage test system

General Description of HV Test Transformer:

The power frequency voltage withstand test purpose is performed to examine the insulation strength and whether partial discharge occurs.

YDJ(G) AC test transformer is based on the Department of Electrica“test transformer”standard produced in the original basis of similar products after a lot of improvements,TDM(G) type AC-DC high voltage test transformer is YDJ(G) series of tests on the basis of the transformer in accordance with national standards“JB/T9641-1999”after improvements production of a new product.This series of products with small size,light weight,compact,full-featured,versatile and easy to use features. Espec -ially for power systems,industrial and mining enterprises, scientific research departments of various high-voltage electrical equipment, electrical components,insulation material insulation strength test frequency or DC high pressure.Is indispensable in high voltage test equipment.

What is the power frequency withstand voltage test of transformer?

Power frequency withstand voltage test is a test that must be done in the factory test of electrical equipment products. For example, circuit breakers, load switches, grounding switches, isolating switches, and switch cabinets must be tested before leaving the factory, and they must be fully tested. Meet the requirements. So what are the power frequency withstand voltage test standards for each level? The following summarizes the 1min power frequency withstand voltage (kV) effective values of some common voltage levels. Here, grounding switches and isolating switch products are taken as examples.

The factory power frequency withstand voltage of 10kV is 42kV
The factory power frequency withstand voltage of 35kV is 95kV
The factory power frequency withstand voltage of 110kV is 230kV
The factory power frequency withstand voltage of 220kV is 368kV
The factory power frequency withstand voltage of 330kV is 504kV



Technical Specification of Withstand Voltage Test Transformer:

（一）、TDM (G) AC test transformer oil（Sheet 1）

（二）、YDJ (G) AC test transformer oil(Sheet 2）

Sheet 1、TDM (G) AC test transformer oil

Type Capacity High Voltage（KV） High voltage current（mA） Low Input Ratio Temperature Rise℃
(KVA) AC DC AC DC Voltage (V） Electric current（A） High/instrument 30 minutes
TDM（G）1.5/50 1.5 50 70 30 15 200 7.5 500 10
TDM（G）3/50 3 50 70 60 15 200 15 500 10
TDM（G）5/50 5 50 70 100 15 200 25 500 10
TDM（G）10/50 10 50 70 200 50 200 50 500 10
TDM（G）20/50 20 50 70 400 100 400 50 500 10
TDM（G）30/50 30 50 70 600 100 400 75 500 10
TDM（G）40/50 40 50 70 800 105 400 100 500 10
TDM（G）50/50 50 50 70 1000 100 400 125 500 10
TDM（G）10/100 10 100 140 100 50 200 50 1000 10
TDM（G）20/100 20 100 140 200 100 400 50 1000 10
TDM（G）30/100 30 100 140 300 100 400 75 1000 10
TDM（G）40/100 40 100 140 400 100 400 100 1000 10
TDM（G）50/100 50 100 140 500 100 400 125 1000 10
TDM（G）20/150 20 150 210 133 100 400 50 1500 10
TDM（G）30/150 30 150 210 200 100 400 75 1500 10
TDM（G）40/150 40 150 210 267 100 400 100 1500 10
TDM（G）50/150 50 150 210 333 100 400 125 1500 10
TDM（G）100/150 100 150 210 667 150 400 250 1500 10

Note: This series of products have 200V tap cascade, can two or three sets of cascade into AC 100KV,150KV, 200KV, 300KV DC 140KV, 210KV, 280KV, 420KV high voltage.5 and out of the high voltage winding according to user needs-15KV medium voltage taps for high-voltage motors for AC voltage test.Special specifications can be customized test transformer

Sheet 2、YDJ (G) AC test transformer oil

Type Capacity (KVA) High Voltage（KV） High voltage current（mA） Low Input Ratio(High/instrument) Temperature Rise℃(30 minutes)
Voltage (V) Electric current (A)
YDJ（G）1.5/50 1.5 50 30 200 7.5 500 10
YDJ（G）3/50 3 50 60 200 15 500 10
YDJ（G）5/50 5 50 100 200 25 500 10
YDJ（G）10/50 10 50 200 200 50 500 10
YDJ（G）20/50 20 50 400 400 50 500 10
YDJ（G）30/50 30 50 600 400 75 500 10
YDJ（G）50/50 50 50 1000 400 125 500 10
YDJ（G）5/100 5 100 50 200 25 1000 10
YDJ（G）10/100 10 100 100 200 50 1000 10
YDJ（G）20/100 20 100 200 400 50 1000 10
YDJ（G）30/100 30 100 300 400 75 1000 10
YDJ（G）50/100 50 100 500 400 125 1000 10
YDJ（G）20/150 20 150 133 400 50 1500 10
YDJ（G）30/150 30 150 200 400 75 1500 10
YDJ（G）50/150 50 150 333 400 125 1500 10
YDJ（G）100/150 100 150 667 400 250 1500 10
YDJ（G）50/200 50 200 250 400 125 1000 10
YDJ（G）100/200 100 200 500 400 250 2000 10
YDJ（G）150/200 150 200 750 400 395 2000 10
YDJ（G）200/200 200 200 1000 400 375 2000 10
YDJ（G）300/200 300 200 1500 400 750 2000 10
YDJ（G）50/300 50 300 170 400 125 3000 10
YDJ（G）100/300 100 300 333 400 250 3000 10
YDJ（G）150/300 150 300 500 400 375 3000 10
YDJ（G）200/300 200 300 667 400 500 3000 10
YDJ（G）300/300 300 300 3000 400 750 3000 10

Note: This series of products have 200V tap, can cascade two or three sets to 100KV, 150KV, 200KV, 300KV and above high voltage. According to user needs, can be withdrawn in the high voltage winding 5 – 15KV medium voltage taps, for high-voltage motors for AC voltage test.

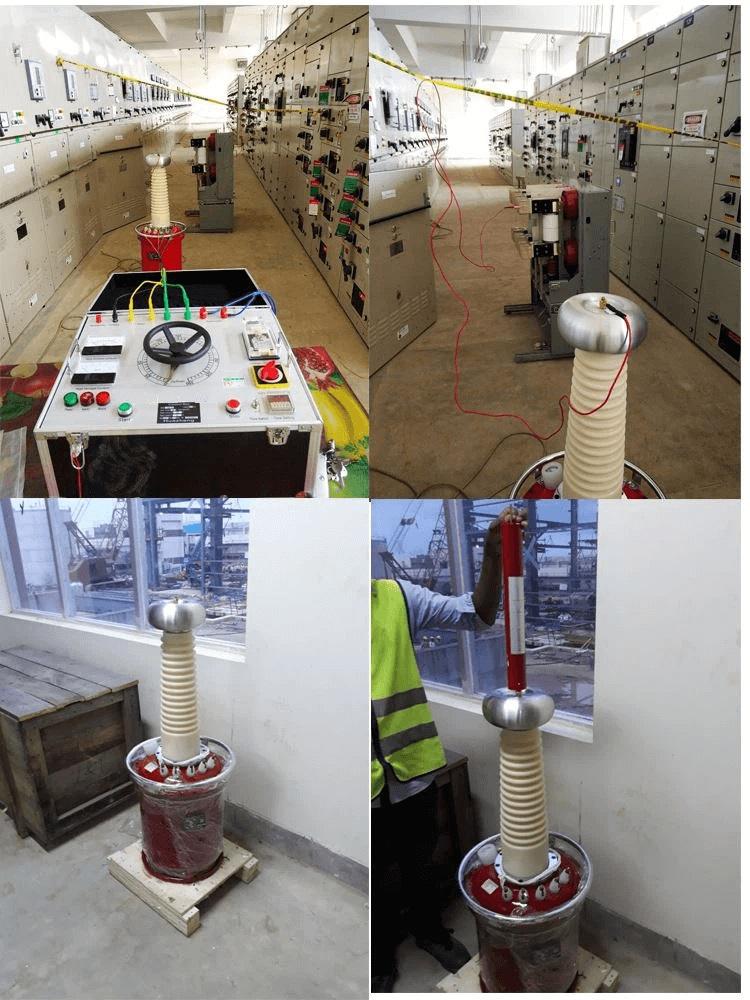

HV Test transformer

HV Test transformer



There are oil-immersed, dry type, and inflatable type High voltage testing transformer with different specifications. Please contact Lucyelec for more details.
