Handheld TTR Transformer Turns Ratio Test Kit

Handheld TTR Transformer Turns Ratio Test Kit provided by Lucyelec Test Equipment, is suitable for single/three phase substation power transformer, Z type transformer and PT ratio measurement. It's with battery inside, small size, light weight and easy to carry. Multi functions of blind measurement of transformation ratio, group test, tap position test, etc. At Lucyelec Test Equipment Co., Ltd., we take pride in offering the high-qualified Transformer Turns Ratio Tester. We also call it voltage ratio test. This equipment is designed to provide precise and reliable measurements of transformer turns ratio, making it an essential tool for professionals in the electrical and power industry. For more details, Please contact Lucyelec

Description

Handheld TTR Transformer Turns Ratio Test Kit

Model: TTR-BB101A

Ⅰ.Brief Introduction of TTR Test Kit

The power transformer shall be regularly tested for turns ratio or voltage ratio, including semi-finished products and finished products in the production process, transformers before putting into operation and during operation in the power system. The traditional transformation ratio bridge is cumbersome to operate, the reading is not intuitive, the necessary conversion is needed, and the test results only reflect one phase transformation ratio. The instrument overcomes the shortcomings of the traditional transformation ratio bridge test, completes the three-phase transformation ratio test at one time, has fast test speed and high accuracy, and greatly improves the test efficiency.

Advantages: Handheld type, Wide test range up to 10000, Lithium battery power supply, smart and lightweight, Blind measurement of transformation ratio, group test, tap position test, etc.

transformer turns ratio test kit

Ⅱ. Technical Parameters of Transformer Ratio Test Kit

1. Test Range: 0.9~10000

2. Accuracy: 0.1%±2 digit (0.9~500)

0.2%±2 digit (500~2000)

0.3%±2 digit (2000~4000)

0.5%±2 digit (4000 above)

3. Resolution: minimum 0.0001

4. Output Voltage: 160V/10V (Auto shift)

5. Power Supply: Lithium battery

6. Working Temperature: –10℃~40℃

7. Relative Humidity: ≤ 80%, no condensation

Ⅲ. Features and Advantages of Transformer Turns Ratio Test Kit

1. The test range is wide, up to 10000.

2. The test speed is fast, and the single-phase test is completed within 5 seconds.

3. 240 * 128 color LCD screen, the interactive interface is more intuitive.

4. Z-connection transformer test.

5. It has the functions of blind measurement of transformation ratio, group test, tap position test, etc.

6. No power down clock and date display, data storage function (50 groups of test data can be stored).

7. High and low voltage reverse connection protection function.

8. Transformer short circuit and inter turn short circuit protection function.

9. Lithium battery power supply, smart and lightweight.

10. Small size, light weight and easy to carry.

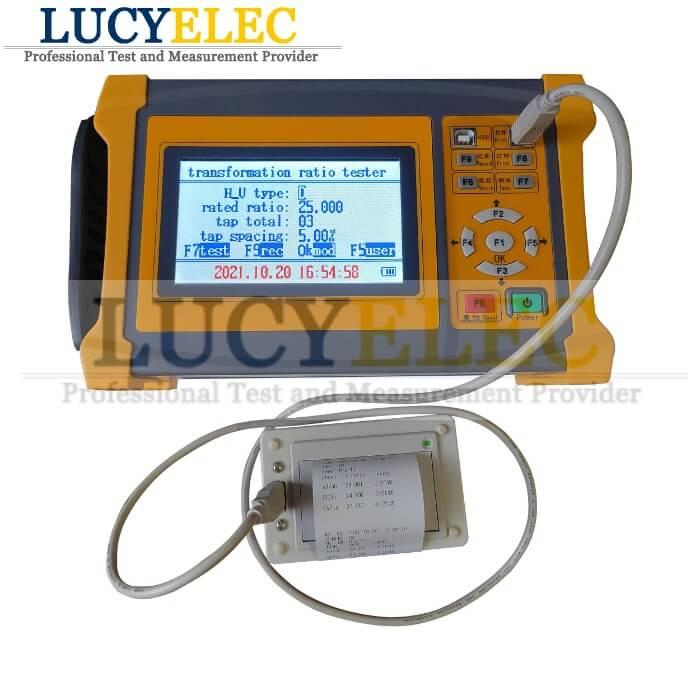

transformer turns ratio tester

At Lucyelec Test Equipment Co., Ltd., we take pride in offering the high-qualified Transformer Turns Ratio Tester. We also call it voltage ratio test. This equipment is designed to provide precise and reliable measurements of transformer turns ratio, making it an essential tool for professionals in the electrical and power industry.

Service: The TTR will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.
