5kV 10kV Digital Megohmmeter for Electrical Insulation Resistance Testing

I. Megohmmeter Application:

High Voltage Insulation Resistance Tester is suitable for measuring the insulation resistance of various transformers, motors, cables, switches, electrical

equipment and insulating materials. High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V test up to 20TΩ.

II. Feature and Advantages:

* Strict accordance with the safety standards for design

* Insulation resistance range 10TΩ @ 10 kv (Can be customized).

* Short circuit current can be adjusted, maximum 5 mA (Can be ordered as high as 10 ma, short circuit current products).

* Automatic display polarization index (PI), induced electric absorption test values than (DAR), and can test the leakage current and capacitance.

* Anti-jamming performance is superior, the interference current reaches 2 mA, still ensure accuracy of test instruments.

* Capacitive discharge rapidly, cable test, no need manual discharge, instruments and automatic discharge quickly.

* 2 methods for power: use of lithium ion batteries, battery life can be up to 4 hours (10000V @ 100MΩ).

* Insulation resistance simulation column.

* Digital filtering functions, external influence deviation display value causing mitigation point using filter function.

* Perfect protection function, and the spare fuse prompt functions.

III. Specification Parameter

* Safety Standard

IEC 61010-1    CAT.IV  600V

IEC 61326     EMC specification: test, control and electrical equipment for testing

IEC60529 IP64 (Outer closed state)

* AC Power:220V±10%,50/60 HZ ,20 VA

* battery:16.8VLithium ion rechargeable battery

* Battery Life:10000V@100M, 4 hour

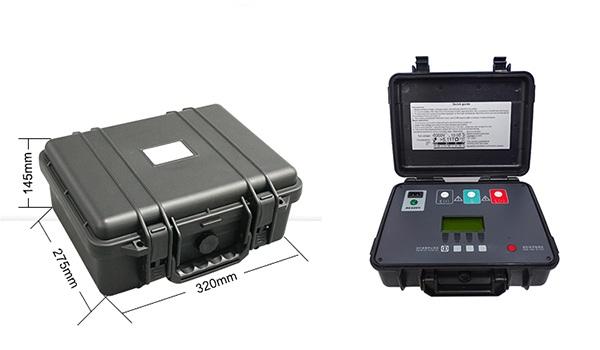

* size(L x W x H):26cm x 20cm x 16cm

* weight:3kg

* Test voltage accuracy: the nominal value 100% to 110%

* Voltage measurement accuracy:5%+3V

* Current test range:10mA

* current measure precision:5%+0.2nA

* short-circuit current: 5mA

* Capacitance test range:20uF

* Capacitance testing accuracy:15%+0.03uF

* Capacitor discharge rate: from 10000V to 10V,0.5S/µF

* Insulation resistance testing range and accuracy(T:23±5ºC ,RH :45 – 75%)

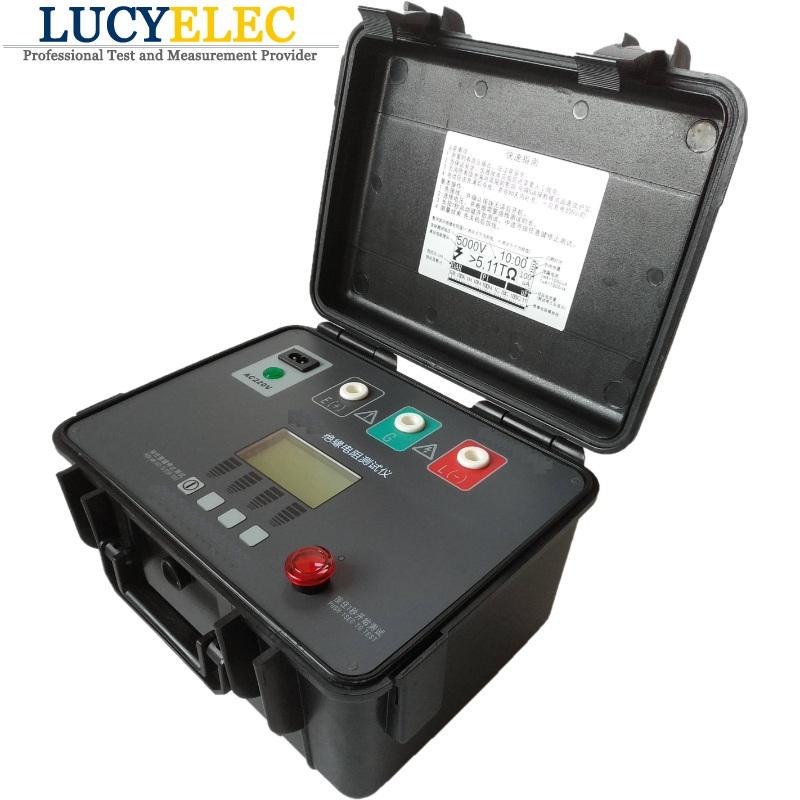

Insulation resistance Tester Panel Description

Product names：High Voltage Insulation Resistance Tester, HV Insulation Resistance Meter, Megohmmeter, Dielectric Strength Tester, High Voltage Resistance Tester, Insulation Resistance Test Equipment, High Voltage Megger, Insulation Resistance Analyzer, Dielectric Resistance Tester, High Voltage Insulation Tester, IR Tester (Insulation Resistance Tester), HIPOT Tester (High Potential Tester)
