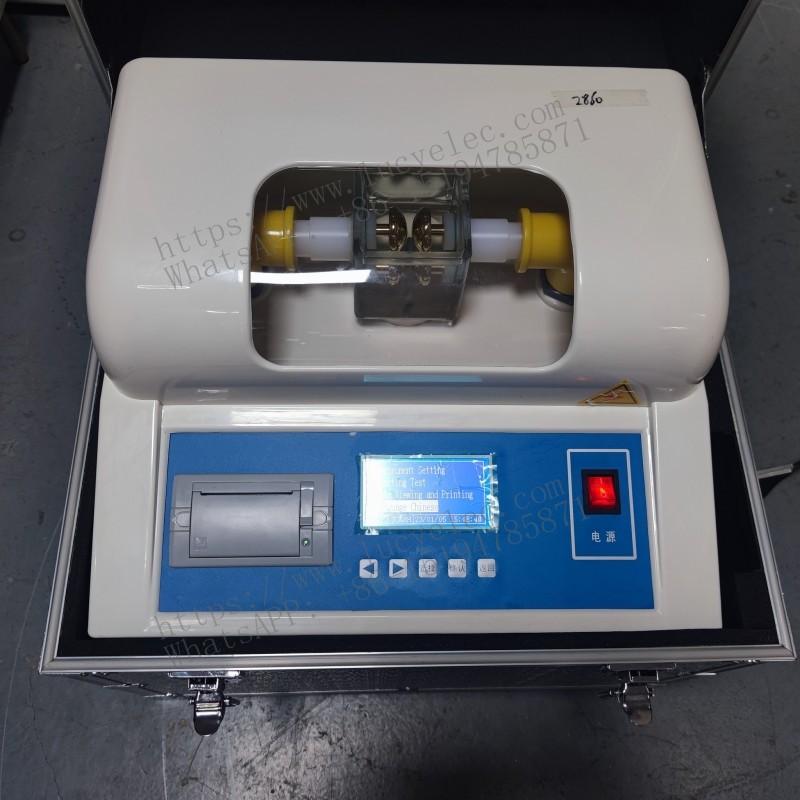

BDV-JQ1B oil dielectric Strength tester (3)[/caption] [caption id="attachment_990" align="aligncenter" width="800"]

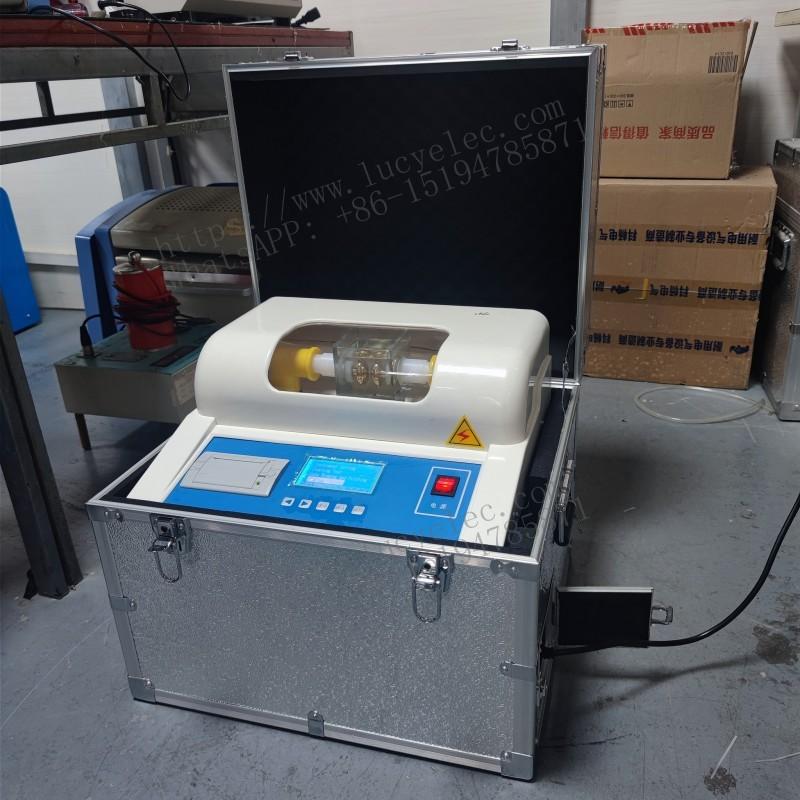

BDV-JQ1B oil dielectric Strength tester (1)[/caption] [caption id="attachment_991" align="aligncenter" width="800"]

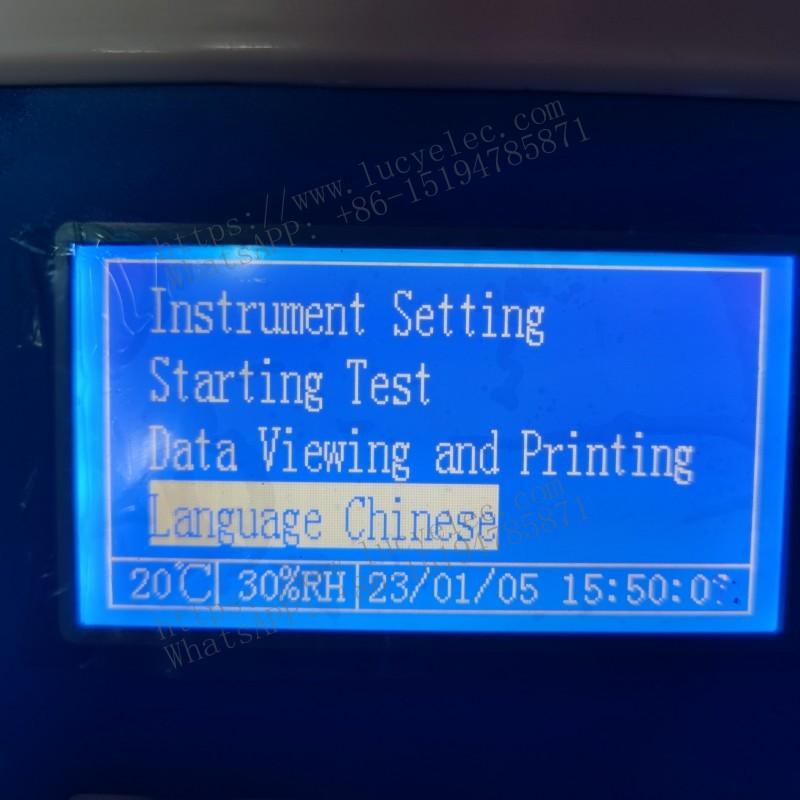

BDV-JQ1B oil dielectric Strength tester (2)[/caption]

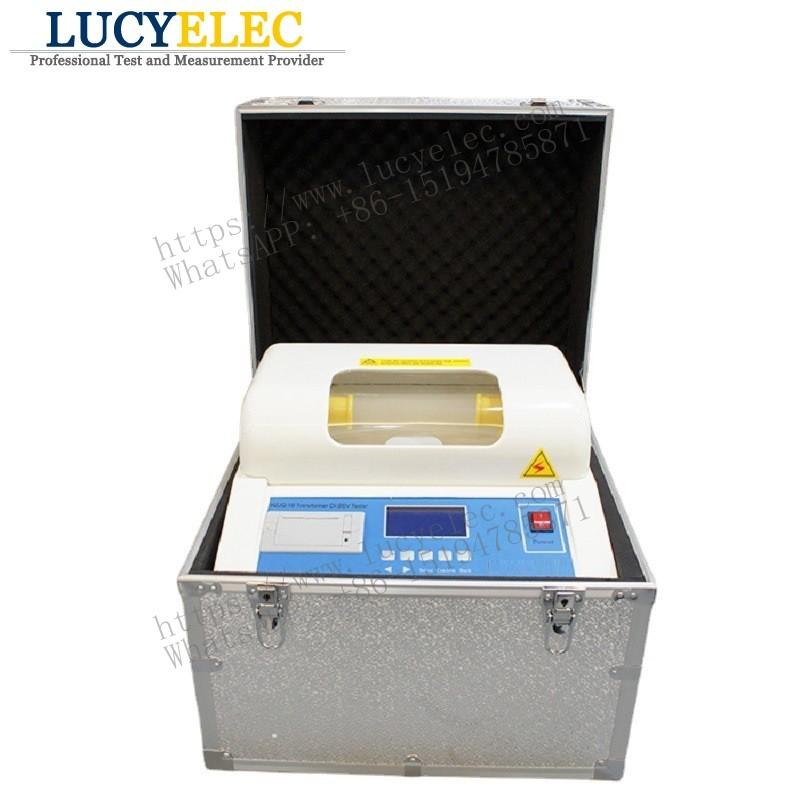

Cheap BDV-JQ1B Portable Transformer Oil Dielectric Strength Tester

The cheap BDV-JQ1B Portable Transformer Oil Dielectric Strength Tester also named Oil BDV Tester of transformer oil. It indicates the ability to withstand electrical stress in oil filled electrical equipment. Lucyelec Test Equipment Co., Ltd. can supply you single cup, three cups, and six cups Oil BDV tester with stable performance and favorable price. Please feel free to ask if any inquiry.

Description

Cheap BDV-JQ1B Portable Transformer Oil Dielectric Strength Tester

Model: BDV-JQ1B

General Descriptions:

Automatic insulating oil dielectric strength tester also named breakdown voltage(BDV) tester for transformer oil, which indicates its ability to resist electrical stress in oil filled electrical equipment. Lucyelec Test Equipment Co., Ltd. can supply you single cup, three cups, and six cups Oil BDV tester with stable performance and favorable price. Please feel free to ask if any inquiry.

Features and Advantages:

1. Capable of measuring the dielectric breakdown voltage up to 100KV.

2. Easy operation and user-friendly. Can display environmental temperature, humidity, and real time display.

3. Fully auto-measuring, data storage, and print.

4. Automatic data storage if power failure.

5. With over-voltage, over-current, H.V. limit switch alarm functions, to make sure the operator more safer.

6. Strong anti-jamming function.

7. Unique design in circuit and softwaremake sure the stable and reliable performance.

Technical Specification:

Output voltage	0~80 kV (0-100KV on request)
Electrode Type	Spherical, semi-spherical, disk Standard 2.5mm (adjustable);
Step-up transformer capacity	1.5 kVA
Rising rate of voltage	0.5~5.0 kV/s (0.5 kV/s, 1kV/s, 2.0kV/s, 3.0kV/s, 5.0kV/s)
Measurement accuracy	1%
Supply voltage	AC 110/220 V ±10%
Power frequency	50/60 Hz ±2%
Power	200w
Working temperature	0~40℃
Working humidity	<85 % RH
Dimension	410×390×375 (mm)
Net weight	29kg

Diversified Oil Breakdown Voltage Tester

Lucyelec oil bdv tester
