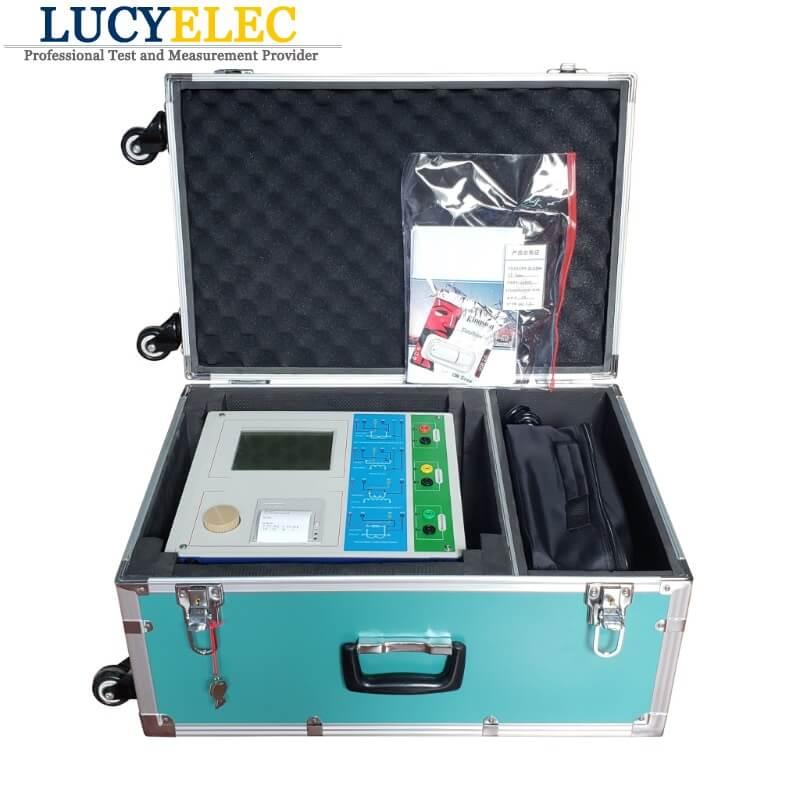

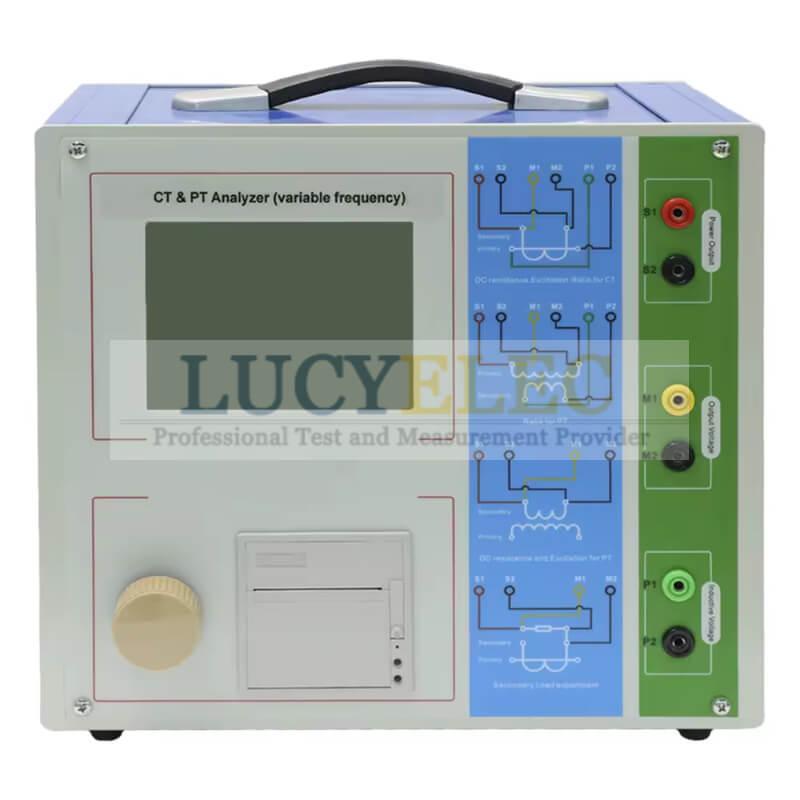

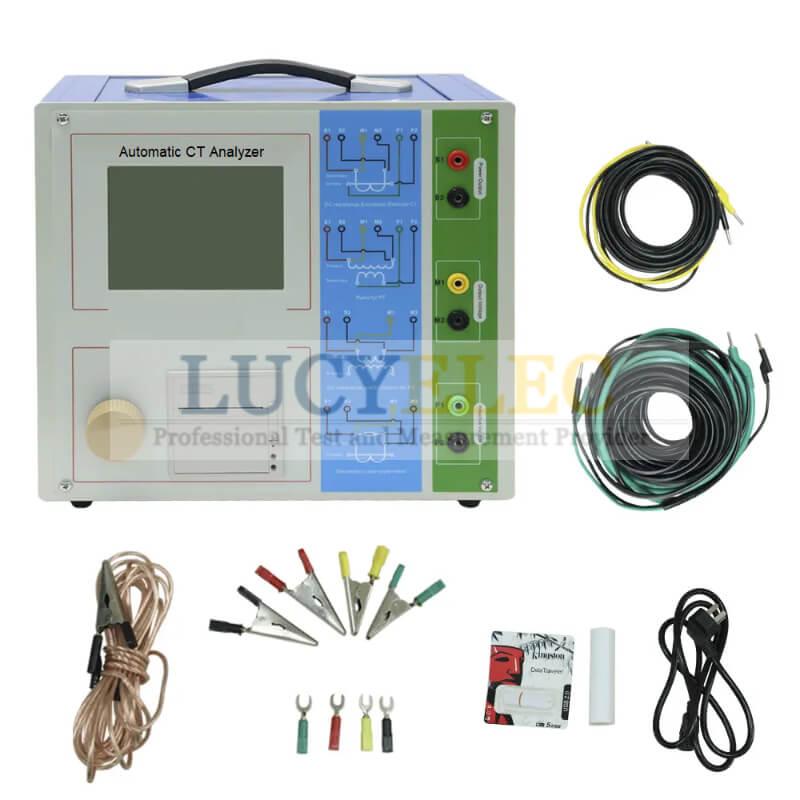

[caption id="attachment_685" align="alignnone" width="800"]lucyelec current transformer testing lucyelec current transformer testing[/caption] [caption id="attachment_680" align="alignnone" width="800"]CT tester CT tester[/caption]

Automatic Current Transformer Testing CT PT Analyzer

Automatic Current Transformer Testing variable frequency CT PT Analyzer is designed and provided by Lucyelec Test Equipment Co., Ltd to provide precise and reliable measurements of current transformer excitation characteristics (i.e., volt-ampere characteristics), ratio, polarity, secondary winding resistance, secondary burden, ratio error and phase displacement. It can also be used for the tests of various PT, including excitation characteristics of the electromagnetic unit, ratio, polarity, secondary winding resistance, ratio error and phase displacement. It's an essential tool for professionals in the electrical and power industry. Please contact Lucyelec for more details.

CT PT Analyzer, Featured Products Tags: ,

Description

Automatic Current Transformer Testing CT PT Analyzer

Model: CTPT-708 (Variable Frequency)

Ⅰ.Brief Introduction of CT PT Analyzer

CTPT-708 variable frequency CT PT analyzer is a new product created after widely adopt customers’ advice and deep theoretical study. It is based on the automatic FA Series Transformer Tester which is produced by Lucyelec Test Equipment that is widely acclaimed and applied. The adoption of high-performance DSP and ARM, advanced manufacturing technology ensure a stable and reliable product performance. Full-featured, high degree of automation, and high efficiency. Variable frequency CT PT analyzer is the professional testing equipment for transformer check in power industry.



Ⅱ. Functions and advantages:

★ Full-featured, not only satisfy the test requirements of various CTs (include TP class), such as the excitation characteristics (i.e., volt-ampere characteristics), ratio, polarity, secondary winding resistance, secondary burden, ratio error and phase displacement, but can also be used for the tests of various PT, including excitation characteristics of the electromagnetic unit, ratio, polarity, secondary winding resistance, ratio error and phase displacement.

★ Automatically give CT, VT parameters, including knee point voltage / current, 10% error curve, the accuracy limit factor (ALF), instrument security factor (FS), the second time constant (Ts), remanence coefficient (Kr), saturated and unsaturated inductance etc.

★Test meet IEC60044 GB1208 (-1) GB16847 (IEC60044-6) became etc all kinds of transformer standards, and in accordance with the transformer types and levels of automatic choose which standard test.

★ Based on advanced principle of low-frequency test method that can meet the CT test on knee voltage up to 30KV.

★Friendly interface beautiful, all Chinese graphic interface.

★ The instrument can store 2000 groups of test data that won’t be lost when power off. After test ended, the data can be coped to PC by USB disk for analysis and being transformed into WORD report.

★ Test is simple and convenient, one-click can complete tests of CT secondary resistance, excitation, ratio and polarity.

★ Easy to carry, because the weight is less than 9Kg.



Ⅲ. Technical Specifications:

Product Name Automatic CT PT Analyzer
Usage Class P/TP CT & VT
Output 0~180Vrms，12Arms，18A(peak value)
CT Ratio Range 1~40000
accuracy ±0.2%
PT Ratio Range 1~40000
accuracy ±0.2%
Phase Range ±5min
accuracy 0.5min
DC resistance Range 0~300Ω
accuracy 2%±2mΩ
Burden Range 0~300VA
accuracy 2%±0.2VA
Power supply AC220V±10%，50Hz
Environmental Conditions  Operating temperature :-10οC ~50οC,Humidity :≤90%
Weight and Dimensions Dimensions:340 mm×300 mm×150mm,Weight<9kg

For different CT, different parameters should be set.Details as table 2.2

Table 2.2  CT parameter description

parameters description P TPY measure PR PX TPS TPX TPZ
rated primary current Used to calculate the ratio of actual current accurately √ √ √ √ √ √ √ √
rated burden Rated load of plate, power factor for 0.8 or 1 √ √ √ √ √ √ √ √
power factor √ √ √ √ √ √ √ √
Rated accurate limit coefficient Kalf The provisions of the plate,default 10,used to calculate the limit e.m.f. and their corresponding composite error √
Rated symmetric short-circuit current coefficient Kssc The provisions of the plate,default 10,used to calculate the peak and their corresponding limits e.m.f transient error √ √ √ √
Primary time constant default :100ms √ √ √
Second time constant default :3000ms √ √
Duty cycle C-t1-O or C-t1-O-tfr-C-t2-O，default:C-t1-O cycle √ √
t1 Current time limit for the first time,default:100ms √ √
tal1 Time required to reach the specified accuracy during the first magnetization cycle,default:40ms
tfr Time required to reach the specified accuracy during the second magnetization cycle,default:500ms,Choose C-t1-O-tfr-C-t2-O,Cycle will be shown √ √
t2 Current time limit for the second time,default:100ms.Choose C-t1-O-tfr-C-t2-O,Cycle will be shown √ √ √
tal2 Second the flow by maintaining accurate limits of time,default:40ms √ √
choose C-t1-O-tfr-C-t2-O,cycle will be shown
Rated instrument security coefficient FS Nameplate regulation,default:10 √
Used for calculation of the limit of composite error and their corresponding electromotive force
Rated calculating coefficients √
Rated inflection point potential(Ek) √
Ie corresponding with Ek √
dimensioning factor √
Rated Ual The rated equivalent quadratic limit voltage √
Ial corresponding with Ual √

Note: “√” expressed the need for settings that do not need to set up a blank.

At Lucyelec Test Equipment Co., Ltd., we take pride in offering the high-qualified CT PT Analyzer. This equipment is designed to provide precise and reliable measurements of current transformer excitation characteristics (i.e., volt-ampere characteristics), ratio, polarity, secondary winding resistance, secondary burden, ratio error and phase displacement. It can also be used for the tests of various PT, including excitation characteristics of the electromagnetic unit, ratio, polarity, secondary winding resistance, ratio error and phase displacement. It’s an essential tool for professionals in the electrical and power industry.

Service: The Lucyelec CT PT Analyzer will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

If you have any inquiry about quotation or cooperation, please contact by WhatsAPP: +86-15194785871, or email us at info@lucyelec.com  Our sales representative will reply you within 24 hours. Thank you for your interest in our products.
