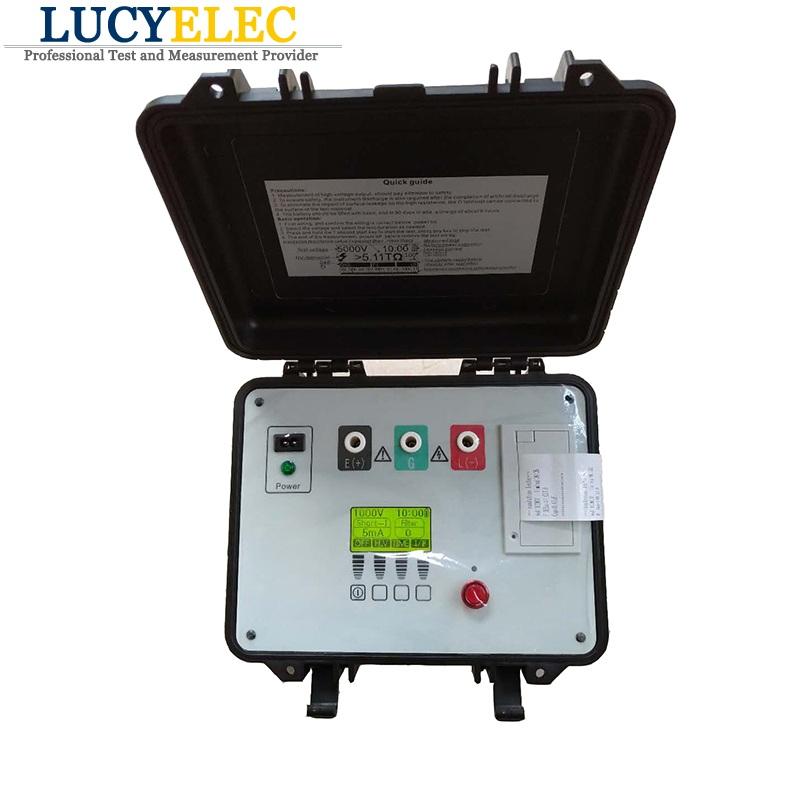

10kV 15kV High Voltage Insulation Resistance Tester with Printer Model: IR1016 (10kV) , IR1516 (15kV)

I. Megohmmeter Application:

High Voltage Insulation Resistance Tester is suitable for measuring the insulation resistance of various transformers, motors, cables, switches, electrical equipment and insulating materials. High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, 15000V test up to 30TΩ.

II. Feature and Advantages:

* Strict accordance with the safety standards for design
* Insulation resistance range 15TΩ @ 15 kv (Can be customized).
* Short circuit current can be adjusted, maximum 5 mA (Can be ordered as high as 10 ma, short circuit current products).
* Automatic display polarization index (PI), induced electric absorption test values than (DAR), and can test the leakage current and capacitance.
* Anti-jamming performance is superior, the interference current reaches 2 mA, still ensure accuracy of test instruments.
* Capacitive discharge rapidly, cable test, no need manual discharge, instruments and automatic discharge quickly.
* 2 methods for power: use of lithium ion batteries, battery life can be up to 4 hours (10000V @ 100MΩ).
* Insulation resistance simulation column.
* Digital filtering functions, external influence deviation display value causing mitigation point using filter function.
* Perfect protection function, and the spare fuse prompt functions.

III. Specification Parameter

* Safety Standard
IEC 61010-1    CAT.IV  600V
IEC 61326      EMC specification: test, control and electrical equipment for testing
IEC60529 IP64 (Outer closed state)
* AC Power:220V±10%,50/60 HZ ,20 VA
* battery:16.8VLithium ion rechargeable battery
* Battery Life:10000V@100M, 4 hour
* size(L x W x H):26cm x 20cm x 16cm
* weight:3kg
* Test voltage accuracy: the nominal value 100% to 110%
* Voltage measurement accuracy:5%+3V
* Current test range:10mA
* current measure precision:5%+0.2nA
* short-circuit current: 5mA
* Capacitance test range:20uF
* Capacitance testing accuracy:15%+0.03uF
* Capacitor discharge rate: from 10000V to 10V,0.5S/µF
* Insulation resistance testing range and accuracy(T:23±5ºC ,RH :45 – 75%)

range accuracy	500V	1000V	2500V	5000V	10000V	15000V
Unspecified	<100k	<100k	<100k	<100k	<100k	<100k
5%	100k-10G	100k-20G	100k-100G	100k-100G	100k-200G	100k-300G
20%	10G -100G	20G-200G	100G-1T	100G-1T	200G-2T	300G-3T
Unspecified	> 100G	> 200G	> 1T	> 1T	> 2T	>3T

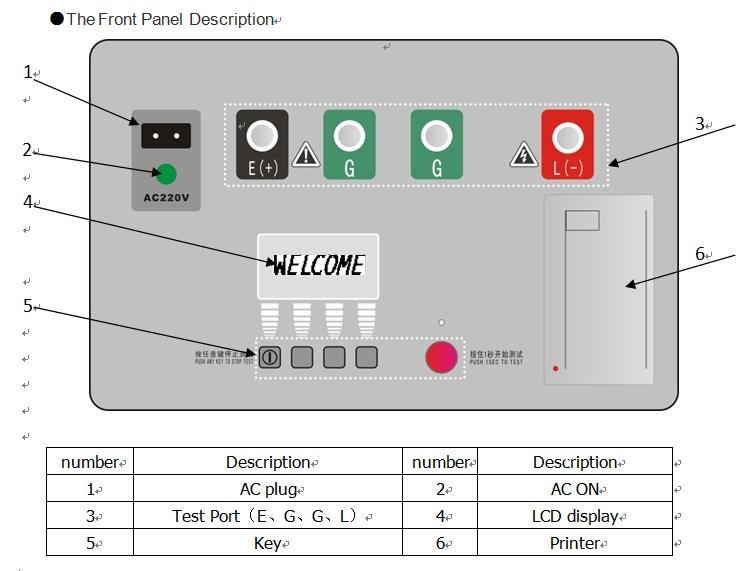

Insulation resistance Tester Panel Description
